JN1-22-26S-10000

JAE Electronics, Inc.

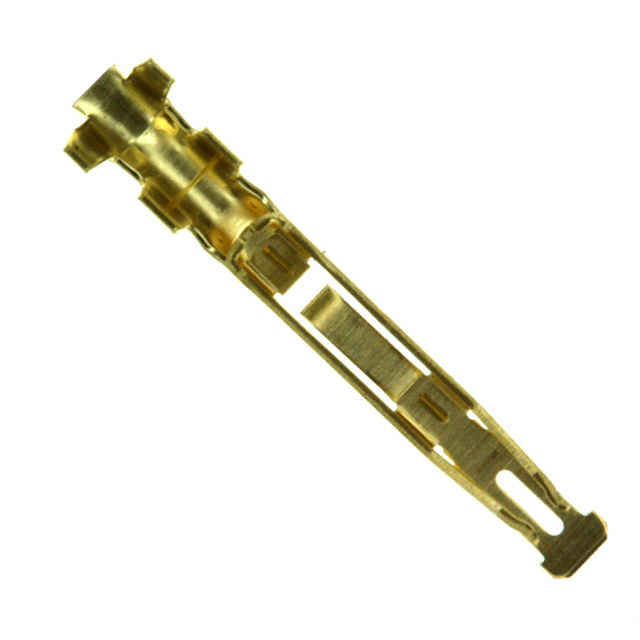

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JN1-22-26S-10000
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONTACT SOCKET 26-28AWG CRIMP
Datasheets:	1.JN1-22-26S-10000.pdf 2.JN1-22-26S-10000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	253639 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 253639 pcs

Reference Price (In US Dollars)

1 pcs: $0.13

10 pcs: $0.123

25 pcs: $0.105

50 pcs: $0.09

100 pcs: $0.086

250 pcs: $0.077

500 pcs: $0.074

1000 pcs: $0.061

2500 pcs: $0.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.13

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JN1-22-26S-10000

Part Number	JN1-22-26S-10000	Manufacturer	JAE Electronics, Inc.
Description	CONTACT SOCKET 26-28AWG CRIMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	253639 pcs	Data sheet	1.JN1-22-26S-10000.pdf 2.JN1-22-26S-10000.pdf
Wire Gauge or Range - mm²	-	Wire Gauge or Range - Coaxial	-
Wire Gauge or Range - AWG	26-28 AWG	Type	Signal, Stamped
Termination Finish	Nickel	Series	JN1
Packaging	Cut Tape (CT)	Other Names	670-1051-1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Insulation Support	Detailed Description	Socket Contact 26-28 AWG Size 22 Crimp Gold
Contact Type	Socket	Contact Termination	Crimp
Contact Size	22	Contact Material	Copper Alloy
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
