JL05-6A20-29P-R

JAE Electronics, Inc.

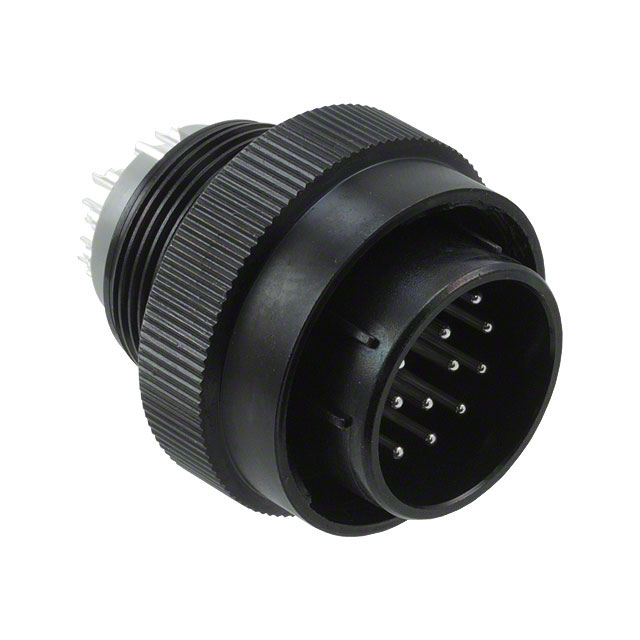

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JL05-6A20-29P-R
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PLUG MALE 17POS SOLDER
Datasheets:	1.JL05-6A20-29P-R.pdf 2.JL05-6A20-29P-R.pdf 3.JL05-6A20-29P-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1934 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1934 pcs

Reference Price (In US Dollars)

1 pcs: $18.68

10 pcs: $17.582

25 pcs: $17.033

50 pcs: $15.934

100 pcs: $15.055

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$18.68

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JL05-6A20-29P-R

Part Number	JL05-6A20-29P-R	Manufacturer	JAE Electronics, Inc.
Description	CONN PLUG MALE 17POS SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1934 pcs	Data sheet	1.JL05-6A20-29P-R.pdf 2.JL05-6A20-29P-R.pdf 3.JL05-6A20-29P-R.pdf
Voltage Rating	-	Termination	Solder
Shielding	-	Shell Size, MIL	-
Shell Size - Insert	20-29	Shell Material	Aluminum Alloy
Shell Finish	Zinc	Series	JL05
Packaging	Bulk	Other Names	670-2032 JL056A2029PR
Orientation	N (Normal)	Operating Temperature	-55°C ~ 125°C
Number of Positions	17 (16 + PE)	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insert Material	Synthetic Resin
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Coupling Nut, Ground Lug
Fastening Type	Bayonet Lock	Detailed Description	17 (16 + PE) Position Circular Connector Plug, Male Pins Solder Silver
Current Rating	13A	Contact Material	Copper Alloy
Contact Finish Thickness - Mating	-	Contact Finish - Mating	Silver
Connector Type	Plug, Male Pins	Color	Black
Cable Opening	1.059" (26.90mm)	Backshell Material, Plating	-
Applications	Industrial, Marine, Telecommunications
