JAE Electronics, Inc.

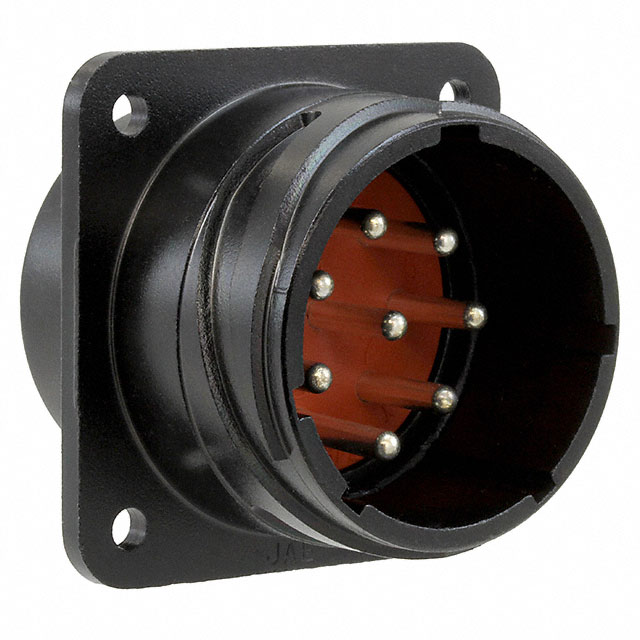

| Part Number | JL05-2L22-23P-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6195 pcs | Data sheet | 1.JL05-2L22-23P-R.pdf2.JL05-2L22-23P-R.pdf3.JL05-2L22-23P-R.pdf |
| Voltage Rating | - | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 22-23 | Shell Material | Aluminum Alloy |
| Shell Finish | Zinc | Series | JL05 |
| Packaging | Bulk | Other Names | 670-2245 JL052L2223PR |
| Orientation | N (Normal) | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 8 (7 + PE) | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Rubber | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Ground | Fastening Type | Bayonet Lock |
| Detailed Description | 8 (7 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 23A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 1.252" (31.80mm) |
| Backshell Material, Plating | - | Applications | Industrial, Marine, Telecommunications |
