JAE Electronics, Inc.

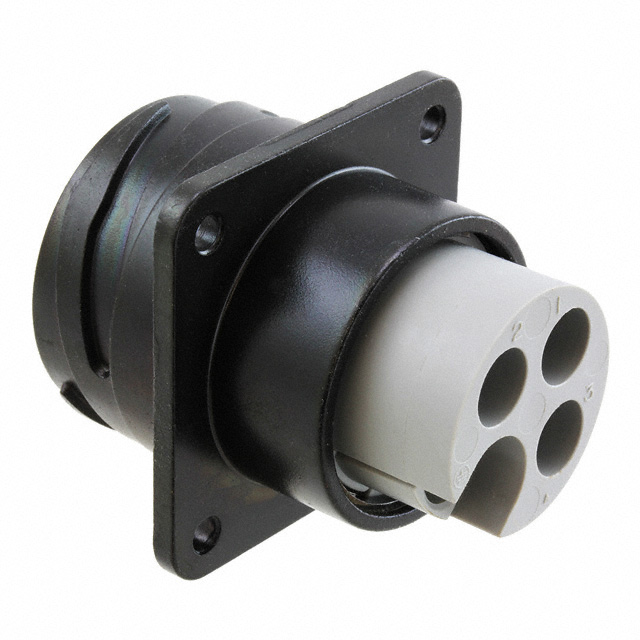

| Part Number | JL05-2A22-22PC-F0-R | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 4POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2208 pcs | Data sheet | 1.JL05-2A22-22PC-F0-R.pdf2.JL05-2A22-22PC-F0-R.pdf3.JL05-2A22-22PC-F0-R.pdf |
| Type | For Male Pins | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 22-22 |
| Shell Material | Aluminum Alloy | Shell Finish | Zinc |
| Series | JL05 | Packaging | Tray |
| Other Names | 670-2412 JL052A2222PCF0R |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 4 (3 + PE) |
| Note | Contacts Not Included | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 4 (3 + PE) Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 8 | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
