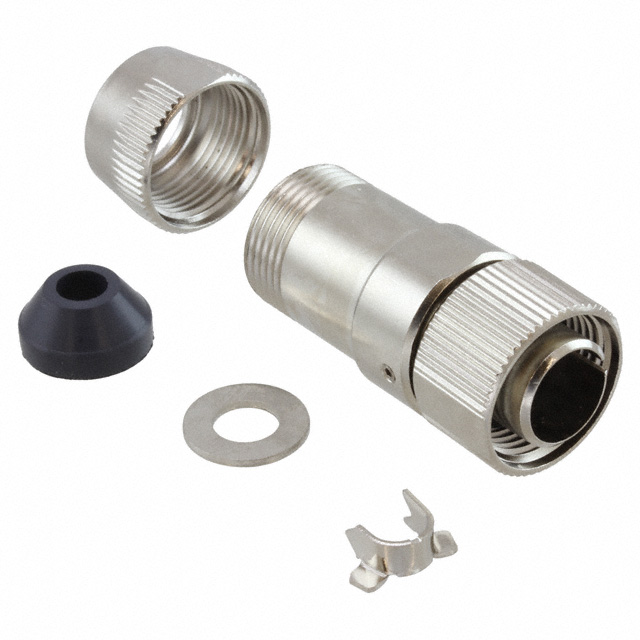

JAE Electronics, Inc.
| Part Number | JB1DB05PL5 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG HSNG MALE 5POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4216 pcs | Data sheet | 1.JB1DB05PL5.pdf2.JB1DB05PL5.pdf3.JB1DB05PL5.pdf |
| Type | For Male Pins | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | B5 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | JB1 | Packaging | Bulk |
| Other Names | 670-2135 | Orientation | Keyed |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 5 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Silver | Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 5 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut |
| Coupling Nut Material, Plating | Zinc Alloy, Nickel | Coupling Nut Diameter | 0.709" (18.01mm) |
| Contact Type | Crimp | Contact Size | 22 |
| Contact Shape | Circular | Connector Type | Plug Housing |
