JAE Electronics, Inc.

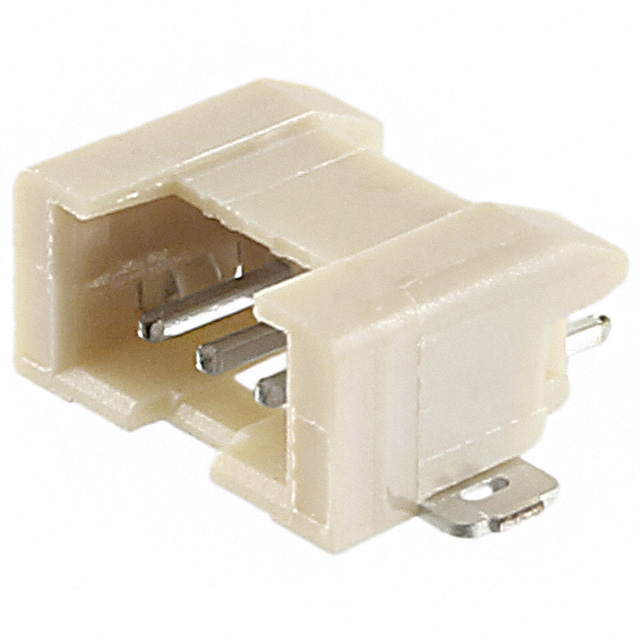

| Part Number | IL-Z-3PL-SMTYE | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN HDR 1.25MM 3POS SMD R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6643 pcs | Data sheet | 1.IL-Z-3PL-SMTYE.pdf2.IL-Z-3PL-SMTYE.pdf3.IL-Z-3PL-SMTYE.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | IL-Z | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 670-1946 IL-Z-3PL-SMTYE-ND ILZ3PLSMTYE |
| Operating Temperature | -40°C ~ 70°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.136" (3.46mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.108" (2.75mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
