IL-AG9-3PL-S3L2

JAE Electronics, Inc.

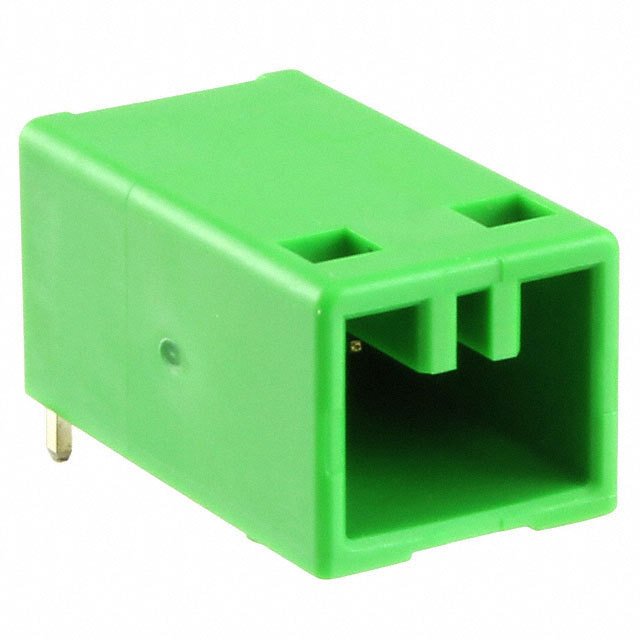

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IL-AG9-3PL-S3L2
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN HEADER 3POS R/A 2.5MM
Datasheets:	1.IL-AG9-3PL-S3L2.pdf 2.IL-AG9-3PL-S3L2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62585 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62585 pcs

Reference Price (In US Dollars)

2940 pcs: $0.496

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.496

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IL-AG9-3PL-S3L2

Part Number	IL-AG9-3PL-S3L2	Manufacturer	JAE Electronics, Inc.
Description	CONN HEADER 3POS R/A 2.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62585 pcs	Data sheet	1.IL-AG9-3PL-S3L2.pdf 2.IL-AG9-3PL-S3L2.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	IL-AG9	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	670-2216 ILAG93PLS3L2
Operating Temperature	-40°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.350" (8.89mm)
Insulation Color	Green	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)	Current Rating	3A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.323" (8.20mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
