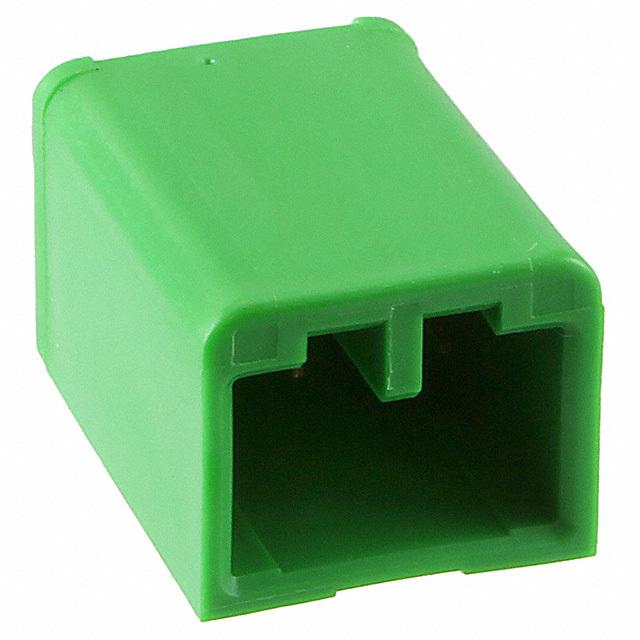

IL-AG5-4P-S3T2

JAE Electronics, Inc.

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IL-AG5-4P-S3T2
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN PIN 4POS SNGL STR T/H
Datasheets:	1.IL-AG5-4P-S3T2.pdf 2.IL-AG5-4P-S3T2.pdf 3.IL-AG5-4P-S3T2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34014 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34014 pcs

Reference Price (In US Dollars)

1 pcs: $0.86

10 pcs: $0.779

100 pcs: $0.668

500 pcs: $0.556

1976 pcs: $0.461

5928 pcs: $0.423

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.86

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IL-AG5-4P-S3T2

Part Number	IL-AG5-4P-S3T2	Manufacturer	JAE Electronics, Inc.
Description	CONN PIN 4POS SNGL STR T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34014 pcs	Data sheet	1.IL-AG5-4P-S3T2.pdf 2.IL-AG5-4P-S3T2.pdf 3.IL-AG5-4P-S3T2.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	IL-AG5	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	0.138" (3.50mm)	Other Names	670-1819 ILAG54PS3T2
Operating Temperature	-40°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	28.2mm
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.717" (18.20mm)
Insulation Color	Green	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 4 position 0.098" (2.50mm)	Current Rating	3A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.331" (8.40mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
