JAE Electronics, Inc.

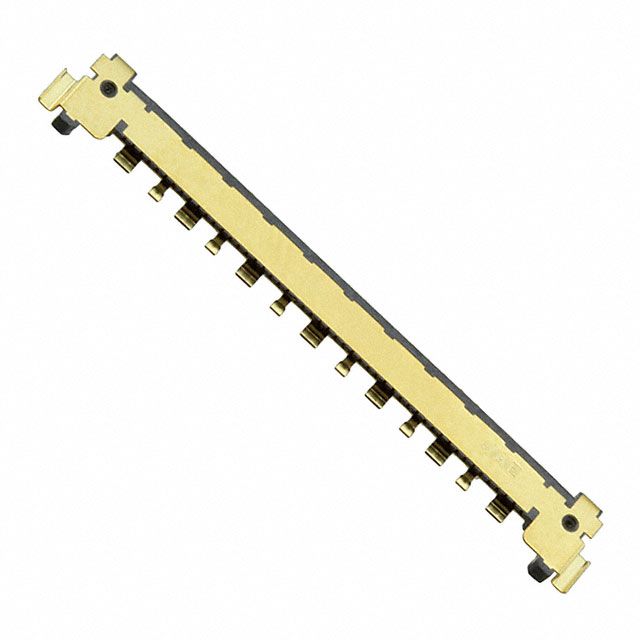

| Part Number | HJ1S050HA1R6000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | LCD EDP CONNECTOR PCB RECEPTACLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72821 pcs | Data sheet | HJ1S050HA1R6000.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Series | HJ1 |
| Row Spacing - Mating | - | Pitch - Mating | 0.016" (0.40mm) |
| Packaging | Tape & Reel (TR) | Other Names | 670-2790-2 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic, Halogen Free | Insulation Height | 0.035" (0.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Shielded, Solder Retention | Fastening Type | Friction Lock |
| Detailed Description | 50 Position Receptacle Connector 0.016" (0.40mm) Surface Mount, Right Angle Gold | Current Rating | 1A per Contact |
| Contact Type | Outer Shroud Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
