JAE Electronics, Inc.

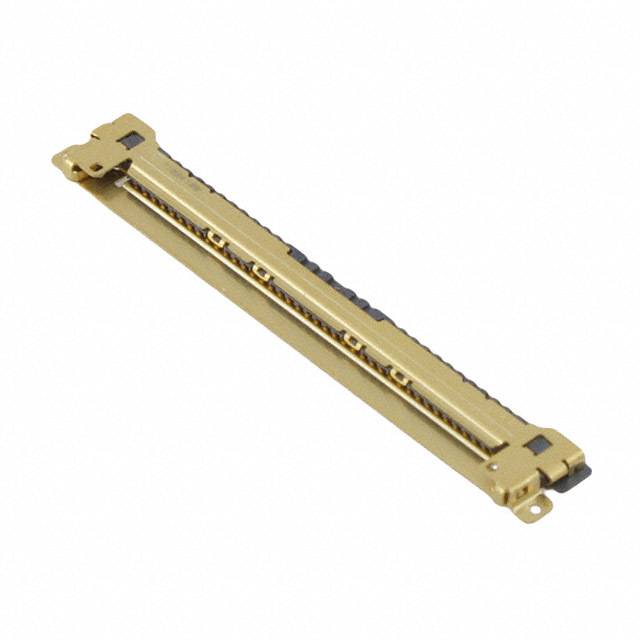

| Part Number | HD1S040HA1R6000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | HD1 SERIES LVDS RECEPTACLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73041 pcs | Data sheet | HD1S040HA1R6000.pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Series | HD |
| Row Spacing - Mating | - | Pitch - Mating | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | 670-2669-1 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic, Halogen Free | Insulation Height | 0.039" (1.00mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Shielded, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | 40 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold | Current Rating | - |
| Contact Type | Outer Shroud Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
