JAE Electronics, Inc.

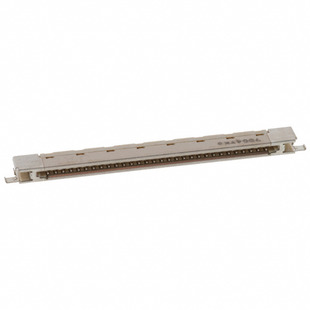

| Part Number | FI-X30SSL-HF | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 1MM 30POS SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2910 pcs | Data sheet | 1.FI-X30SSL-HF.pdf2.FI-X30SSL-HF.pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Cable/Wire | Series | FI-X |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tray | Other Names | 670-1219 |
| Operating Temperature | -40°C ~ 80°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 0.091" (2.30mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Grounding Pins, Shielded, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 30 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold |
| Current Rating | 1A per Contact | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
