FI-W5P-HFE

JAE Electronics, Inc.

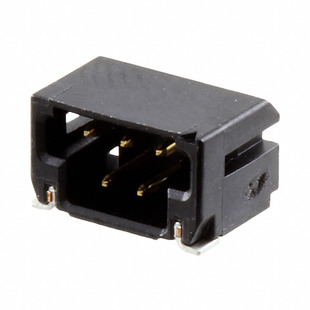

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FI-W5P-HFE
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 1.25MM 5POS SMD R/A
Datasheets:	1.FI-W5P-HFE.pdf 2.FI-W5P-HFE.pdf 3.FI-W5P-HFE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33054 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33054 pcs

Reference Price (In US Dollars)

204 pcs: $0.889

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.889

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FI-W5P-HFE

Part Number	FI-W5P-HFE	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 1.25MM 5POS SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33054 pcs	Data sheet	1.FI-W5P-HFE.pdf 2.FI-W5P-HFE.pdf 3.FI-W5P-HFE.pdf
Voltage Rating	200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	FI	Row Spacing - Mating	0.055" (1.40mm)
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	-	Other Names	670-1859 FI-W5P-HFE-ND FIW5PHFE
Operating Temperature	-40°C ~ 80°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.146" (3.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Solder Retention	Fastening Type	Friction Lock
Detailed Description	Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.094" (2.40mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin or Tin-Alloy
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	-
