FI-W21P-HFE-E1500

JAE Electronics, Inc.

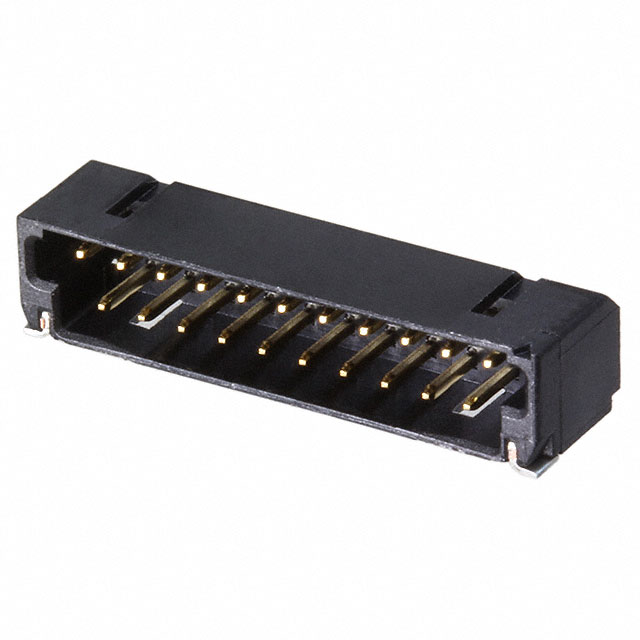

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FI-W21P-HFE-E1500
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 1.25MM 21POS SMD R/A
Datasheets:	1.FI-W21P-HFE-E1500.pdf 2.FI-W21P-HFE-E1500.pdf 3.FI-W21P-HFE-E1500.pdf 4.FI-W21P-HFE-E1500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21960 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21960 pcs

Reference Price (In US Dollars)

1 pcs: $1.477

10 pcs: $1.419

100 pcs: $1.183

500 pcs: $1.005

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.477

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FI-W21P-HFE-E1500

Part Number	FI-W21P-HFE-E1500	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 1.25MM 21POS SMD R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21960 pcs	Data sheet	1.FI-W21P-HFE-E1500.pdf 2.FI-W21P-HFE-E1500.pdf 3.FI-W21P-HFE-E1500.pdf 4.FI-W21P-HFE-E1500.pdf
Voltage Rating	200V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	FI	Row Spacing - Mating	0.055" (1.40mm)
Pitch - Mating	0.049" (1.25mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	670-2735-1
Operating Temperature	-40°C ~ 80°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	21
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled	Insulation Height	0.146" (3.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Solder Retention	Fastening Type	Friction Lock
Detailed Description	Connector Header Surface Mount, Right Angle 21 position 0.049" (1.25mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.094" (2.40mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin or Tin-Alloy
Contact Finish - Mating	Gold	Connector Type	Receptacle
Applications	-
