JAE Electronics, Inc.

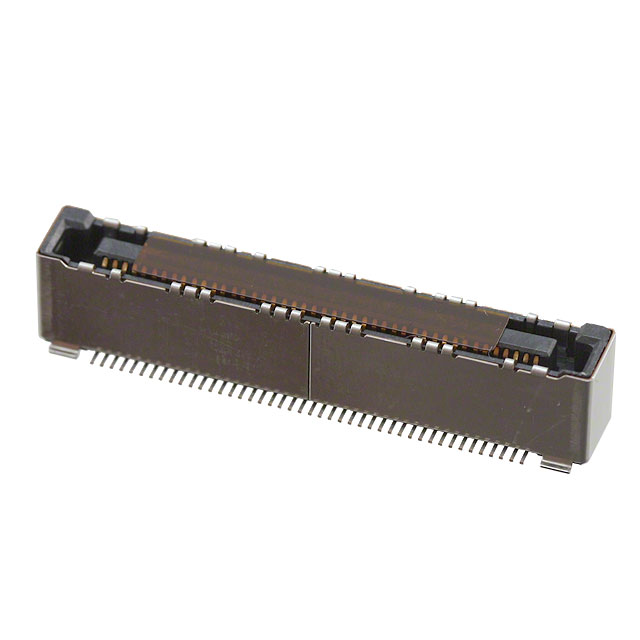

| Part Number | FI-TD44SB-E-R750 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 44POS STRAIGHT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64328 pcs | Data sheet | 1.FI-TD44SB-E-R750.pdf2.FI-TD44SB-E-R750.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Series | FI-D |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Other Names | 670-2082-2 FITD44SBER750 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 44 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.35mm |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.222" (5.65mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention | Fastening Type | Latch Holder |
| Detailed Description | 44 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold | Current Rating | 0.5A per Contact |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
