JAE Electronics, Inc.

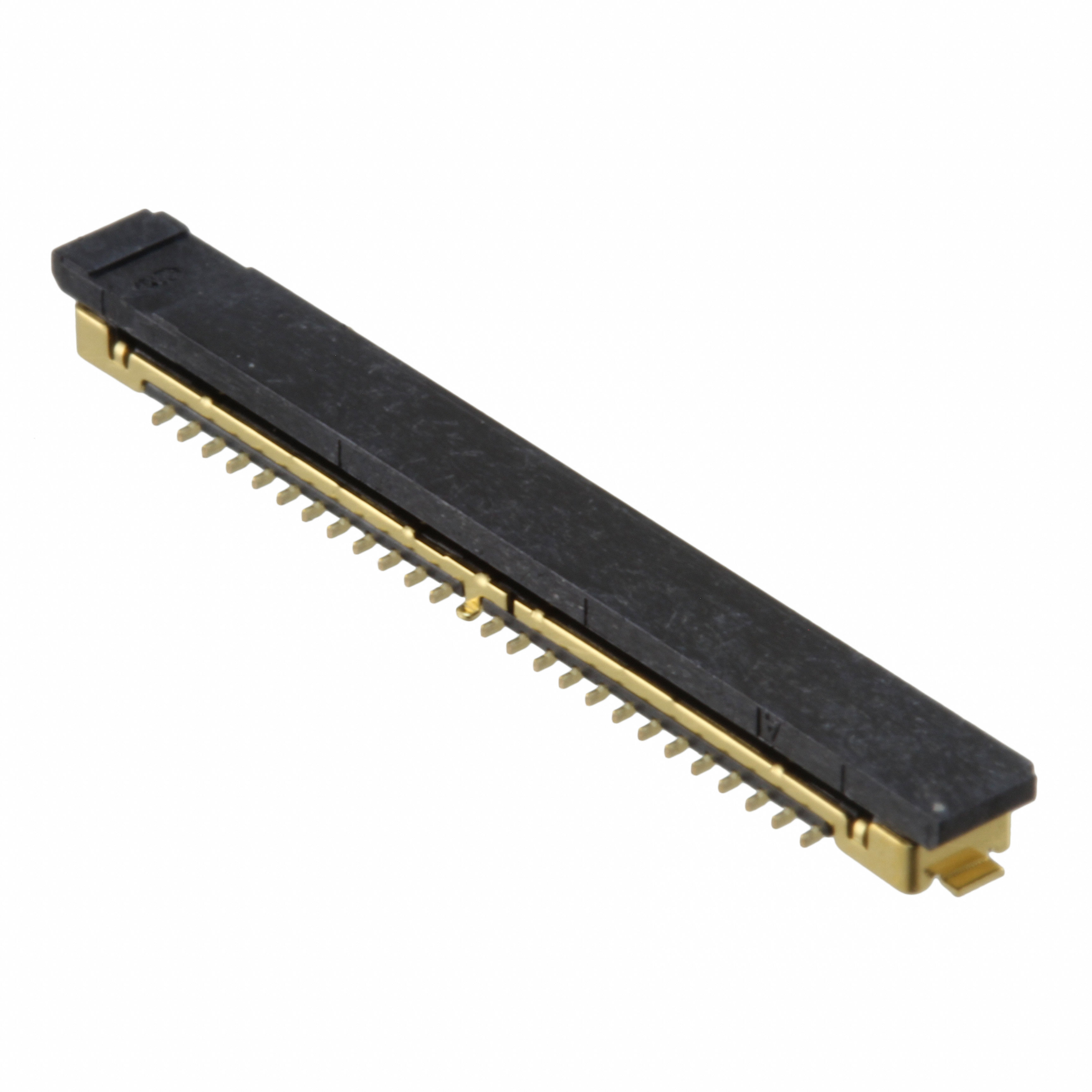

| Part Number | FI-JW50S-VF16-100 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RECPT 0.3MM FINE COAX 50POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3637 pcs | Data sheet | FI-JW50S-VF16-100.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Series | FI-JW |
| Row Spacing - Mating | - | Pitch - Mating | 0.012" (0.30mm) |
| Packaging | Bulk | Other Names | 670-2512 FIJW50SVF16100 |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 1.65mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 0.063" (1.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Grounding Pins, Pick and Place, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 50 Position Receptacle Connector 0.012" (0.30mm) Surface Mount Gold |
| Current Rating | 0.25A per Contact | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
