JAE Electronics, Inc.

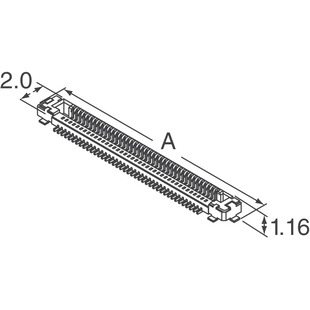

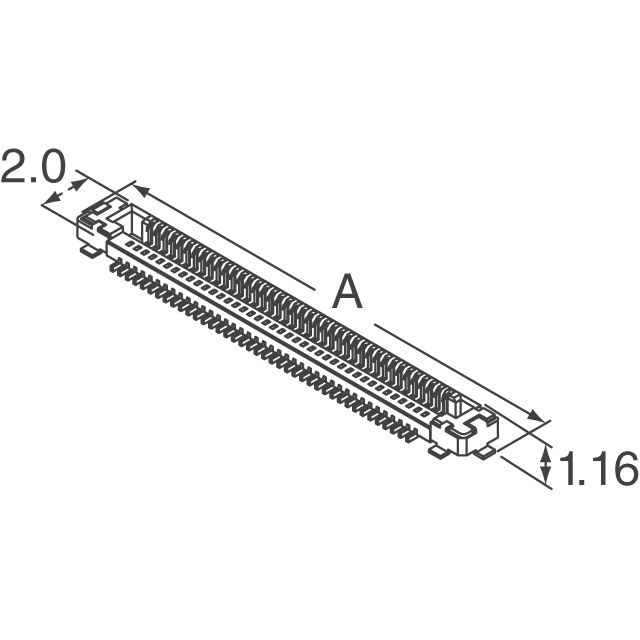

| Part Number | FI-J40S-VF15N-R3000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT 0.4MM 40POS VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49935 pcs | Data sheet | 1.FI-J40S-VF15N-R3000.pdf2.FI-J40S-VF15N-R3000.pdf3.FI-J40S-VF15N-R3000.pdf4.FI-J40S-VF15N-R3000.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Series | FI-J |
| Row Spacing - Mating | - | Pitch - Mating | 0.016" (0.40mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 1.58mm | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 0.046" (1.16mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 40 Position Receptacle Connector 0.016" (0.40mm) Surface Mount Gold |
| Current Rating | 0.3A per Contact | Contact Type | Non-Gendered |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
