JAE Electronics, Inc.

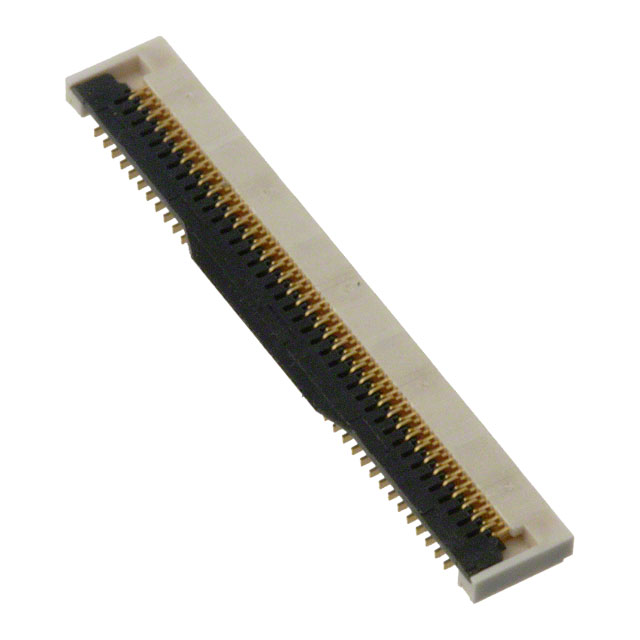

| Part Number | FF0881SA1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 81POS 0.20MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30695 pcs | Data sheet | 1.FF0881SA1.pdf2.FF0881SA1.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FF08 | Pitch | 0.008" (0.20mm) |
| Packaging | Strip | Other Names | 670-2476 670-2476-1 670-2476-1-ND 670-2476-2 670-2476-2-ND 670-2476-6 670-2476-6-ND FF0881SA1-R300 FF0881SA1R300 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 81 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Plastic |
| Housing Color | Beige | Height Above Board | 0.039" (1.00mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.15mm | Detailed Description | 81 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle |
| Current Rating | 0.3A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | Plastic | Actuator Color | Black |
