JAE Electronics, Inc.

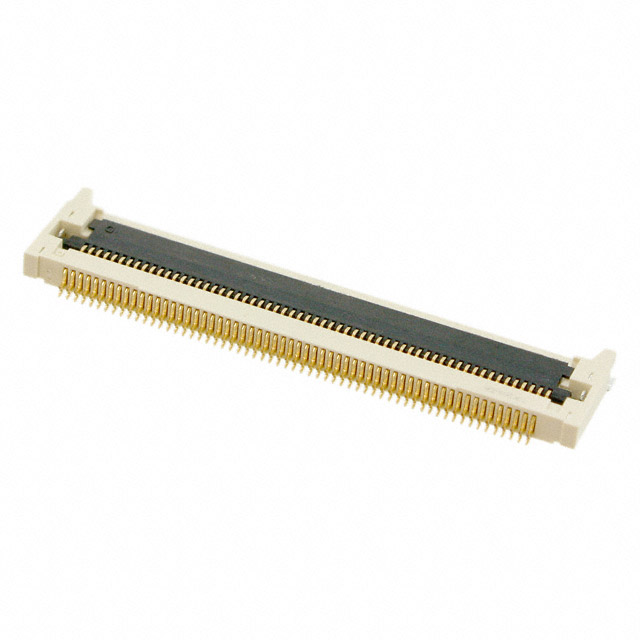

| Part Number | FF0360SA1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 60POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12080 pcs | Data sheet | 1.FF0360SA1.pdf2.FF0360SA1.pdf3.FF0360SA1.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FF03 | Pitch | 0.020" (0.50mm) |
| Packaging | Strip | Other Names | 670-2084 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 60 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Locking Feature | Rotary Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | White | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 60 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | Black |
