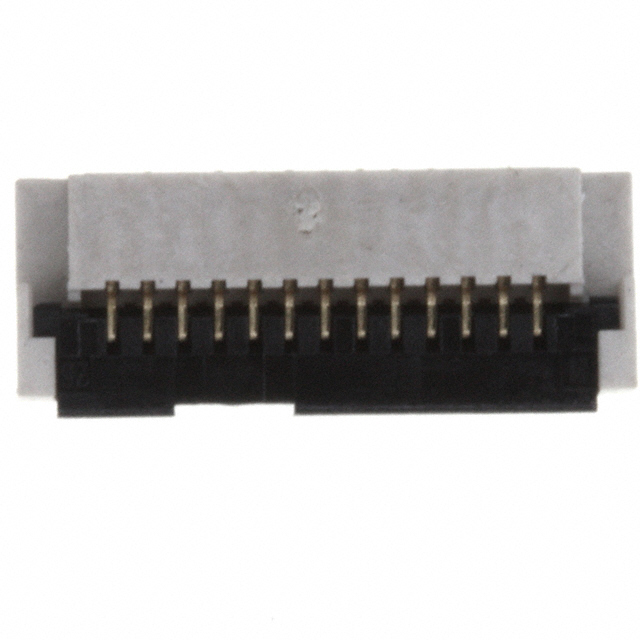

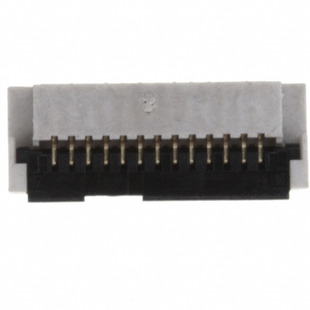

JAE Electronics, Inc.
| Part Number | FB3S025C11 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 25POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5195 pcs | Data sheet | 1.FB3S025C11.pdf2.FB3S025C11.pdf3.FB3S025C11.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FB3 | Pitch | 0.012" (0.30mm) |
| Packaging | Bulk | Other Names | 670-1482 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 25 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | 0.075" (1.90mm) | Flat Flex Type | FPC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.35A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
