JAE Electronics, Inc.
| Part Number | FB10S061JA2R6000 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|

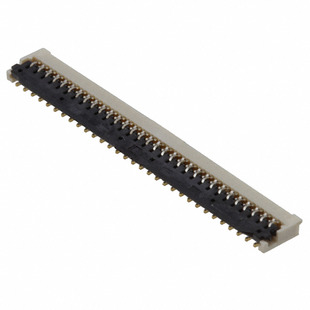

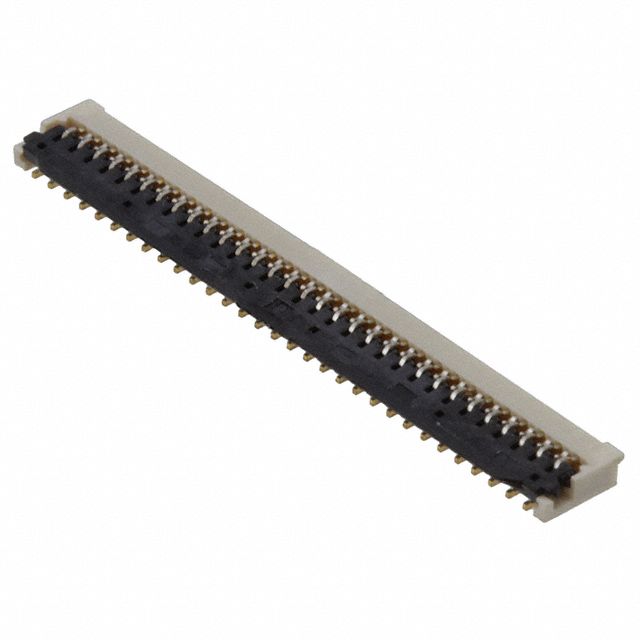

| Description | CONN FPC BOTTOM 61POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6659 pcs | Data sheet | FB10S061JA2R6000.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FB10 | Pitch | 0.012" (0.30mm) |
| Packaging | Cut Tape (CT) | Other Names | 670-2668-1 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 61 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | - |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | White |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 61 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.35A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed or Tapered | Actuator Material | Plastic |
| Actuator Color | Black |
