JAE Electronics, Inc.

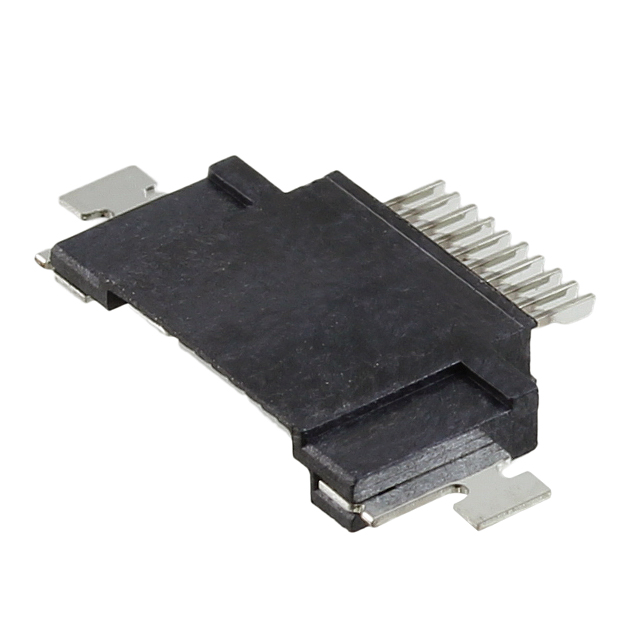

| Part Number | FA5B010HP1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN FPC BOTTOM 10POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26199 pcs | Data sheet | 1.FA5B010HP1.pdf2.FA5B010HP1.pdf3.FA5B010HP1.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FA5 | Pitch | 0.020" (0.50mm) |
| Packaging | Tray | Other Names | 670-2184 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Board Edge, Cutout | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | Black | Height Above Board | - |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 10 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Board Edge, Cutout |
| Current Rating | 0.8A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | White |
