JAE Electronics, Inc.

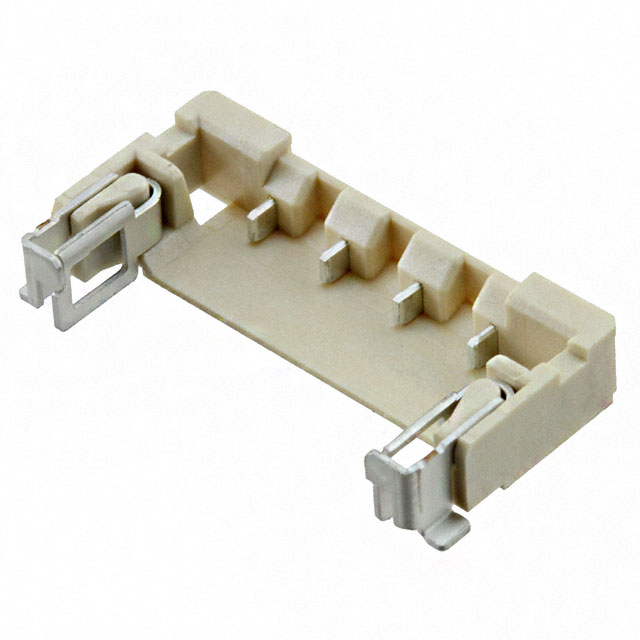

| Part Number | ES9P004VFZR1600 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | ES9 4 PIN PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 173718 pcs | Data sheet | 1.ES9P004VFZR1600.pdf2.ES9P004VFZR1600.pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 3 Wall |
| Series | ES9 | Row Spacing - Mating | - |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 670-2742-2 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.118" (3.00mm) |
| Insulation Color | Ivory | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Spring Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm) | Current Rating | 3A |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Plug |
| Applications | - |
