JAE Electronics, Inc.

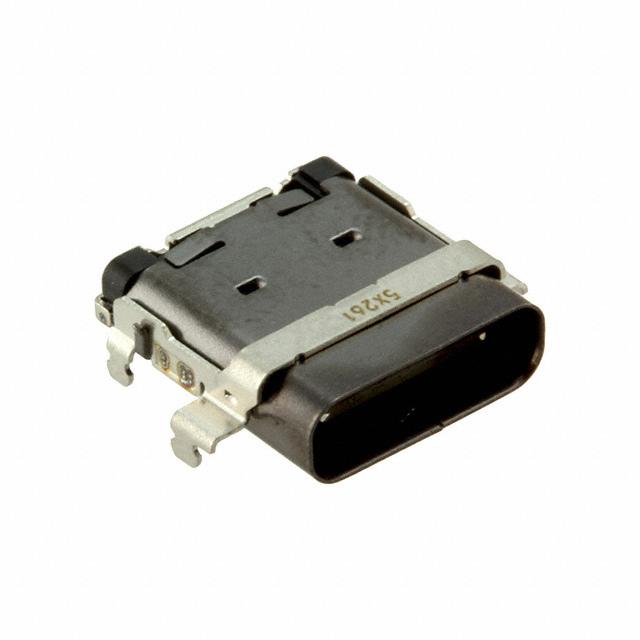

| Part Number | DX07B024XJ1R1300 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT USB3.1 TYPEC BRD EDGE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30938 pcs | Data sheet | 1.DX07B024XJ1R1300.pdf2.DX07B024XJ1R1300.pdf |
| Voltage - Rated | 20V | Termination | Solder |
| Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) | Shielding | Shielded |
| Shell/Shielding Material | Steel, Stainless | Series | DX07 |
| Packaging | Cut Tape (CT) | Other Names | 670-2849-1 |
| Operating Temperature | -30°C ~ 80°C | Number of Ports | 1 |
| Number of Contacts | 24 | Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Mounting Feature | Horizontal, Mid Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10000 | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | Black | Ingress Protection | - |
| Gender | Receptacle | Features | Pick and Place |
| Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle | Current Rating | 0.25A, 1.25A |
| Contact Finish | Gold | Connector Type | USB - C |
