DP1R020JQ3

JAE Electronics, Inc.

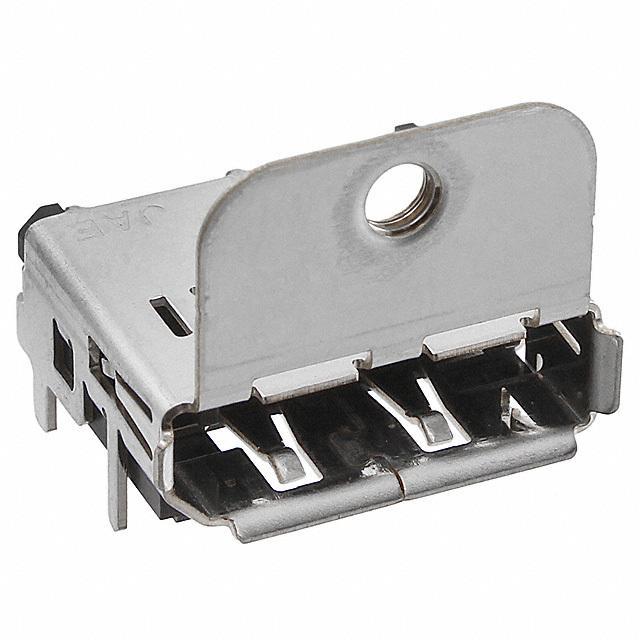

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DP1R020JQ3
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 20POS RT ANG TOP MNT
Datasheets:	1.DP1R020JQ3.pdf 2.DP1R020JQ3.pdf 3.DP1R020JQ3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28955 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28955 pcs

Reference Price (In US Dollars)

1 pcs: $1.011

10 pcs: $0.971

100 pcs: $0.809

500 pcs: $0.688

1000 pcs: $0.587

5000 pcs: $0.526

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.011

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DP1R020JQ3

Part Number	DP1R020JQ3	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 20POS RT ANG TOP MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28955 pcs	Data sheet	1.DP1R020JQ3.pdf 2.DP1R020JQ3.pdf 3.DP1R020JQ3.pdf
Voltage - Rated	-	Termination	Solder
Specifications	Display Port 1.1a	Shielding	Unshielded
Shell/Shielding Material	Copper Alloy	Series	DP1
Packaging	Tray	Other Names	670-2430
Operating Temperature	-20°C ~ 85°C	Number of Ports	1
Number of Contacts	20	Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Flange, Horizontal	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10000	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	Black	Ingress Protection	-
Gender	Receptacle	Features	-
Detailed Description	DisplayPort Display Port 1.1a Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole	Current Rating	0.5A per Contact
Contact Finish	Gold	Connector Type	DisplayPort
