TLP521-4XSM

Isocom Components

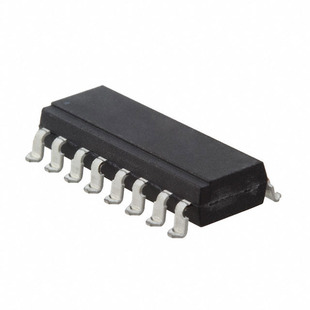

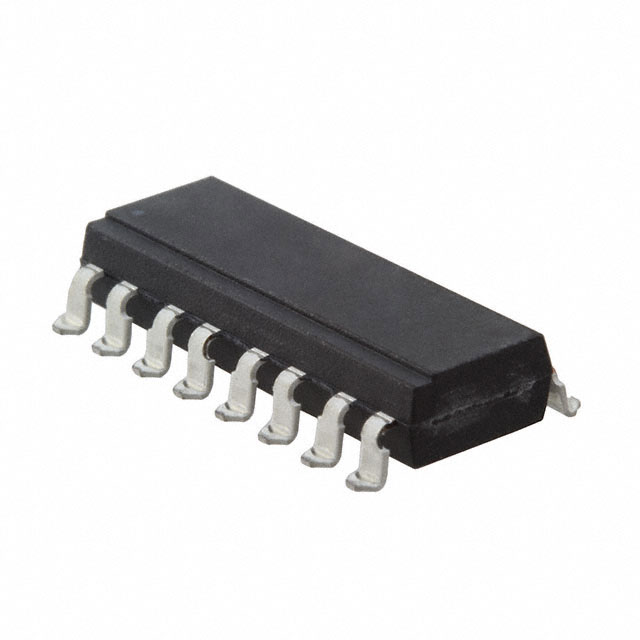

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLP521-4XSM
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 5.3KV 4CH TRANS 16SMD
Datasheets:	TLP521-4XSM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57837 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 57837 pcs

Reference Price (In US Dollars)

1 pcs: $0.618

10 pcs: $0.503

25 pcs: $0.387

100 pcs: $0.348

250 pcs: $0.31

500 pcs: $0.263

1000 pcs: $0.217

2500 pcs: $0.206

5000 pcs: $0.201

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.618

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLP521-4XSM

Part Number	TLP521-4XSM	Manufacturer	Isocom Components
Description	OPTOISO 5.3KV 4CH TRANS 16SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57837 pcs	Data sheet	TLP521-4XSM.pdf
Voltage - Output (Max)	55V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.15V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	-
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tube	Package / Case	16-SMD, Gull Wing
Output Type	Transistor	Operating Temperature	-30°C ~ 100°C
Number of Channels	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	2 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 5300Vrms 4 Channel	Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA	Current - Output / Channel	-
Current - DC Forward (If) (Max)	50mA
