ISD5X

Isocom Components

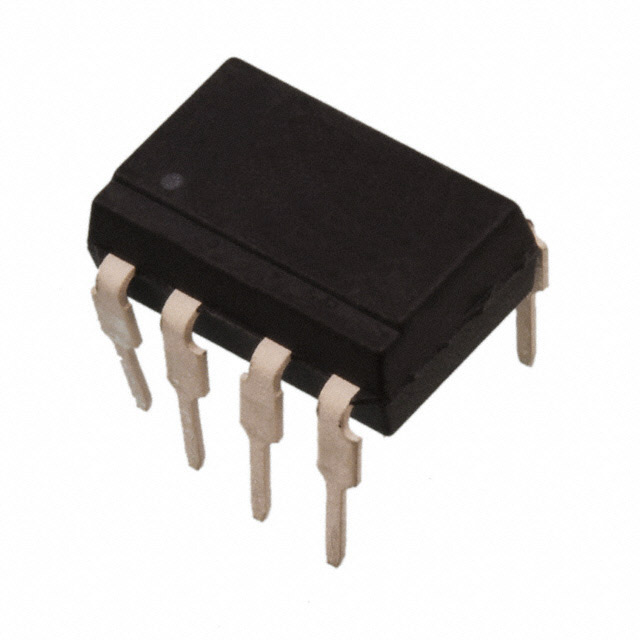

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISD5X
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 5.3KV 2CH TRANS 8DIP
Datasheets:	ISD5X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	105033 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 105033 pcs

Reference Price (In US Dollars)

1 pcs: $0.365

10 pcs: $0.284

25 pcs: $0.235

100 pcs: $0.203

250 pcs: $0.178

800 pcs: $0.135

1600 pcs: $0.122

3200 pcs: $0.113

5600 pcs: $0.109

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.365

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISD5X

Part Number	ISD5X	Manufacturer	Isocom Components
Description	OPTOISO 5.3KV 2CH TRANS 8DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	105033 pcs	Data sheet	ISD5X.pdf
Voltage - Output (Max)	70V	Voltage - Isolation	5300Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	2.6µs, 2.2µs
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Transistor	Other Names	ISD5 ISD5-ND
Operating Temperature	-25°C ~ 100°C	Number of Channels	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Current Transfer Ratio (Min)	50% @ 10mA	Current Transfer Ratio (Max)	400% @ 10mA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	50mA
