ICPL0601SMT&R

Isocom Components

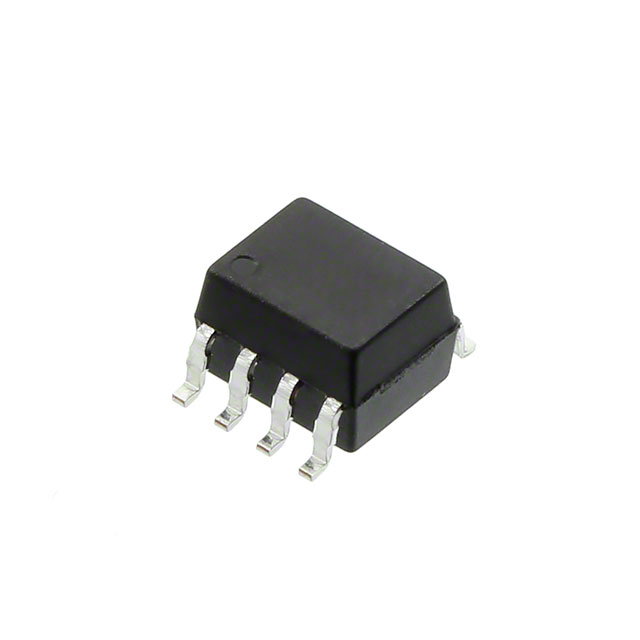

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ICPL0601SMT&R
Manufacturer/Brand:	Isocom Components
Product description	OPTOISO 3.75KV OPN COLLECTOR
Datasheets:	ICPL0601SMT&R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	135376 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 135376 pcs

Reference Price (In US Dollars)

2000 pcs: $0.225

6000 pcs: $0.22

10000 pcs: $0.212

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.225

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ICPL0601SMT&R

Part Number	ICPL0601SMT&R	Manufacturer	Isocom Components
Description	OPTOISO 3.75KV OPN COLLECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	135376 pcs	Data sheet	ICPL0601SMT&R.pdf
Voltage - Supply	7V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.4V	Supplier Device Package	-
Series	-	Rise / Fall Time (Typ)	30ns, 10ns
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns	Packaging	Tape & Reel (TR)
Package / Case	8-SOIC (0.154", 3.90mm Width)	Output Type	Open Collector
Other Names	ICPL0601SMTR	Operating Temperature	-40°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inputs - Side 1/Side 2	1/0
Input Type	DC	Detailed Description	Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 5kV/µs CMTI
Data Rate	10Mbps	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	20mA	Common Mode Transient Immunity (Min)	5kV/µs
