ACTPAT254-01-IP

Inventek Systems

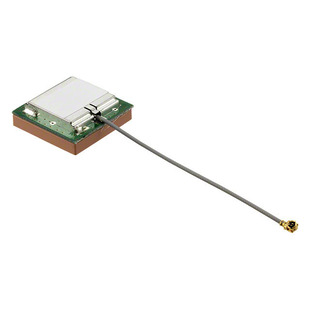

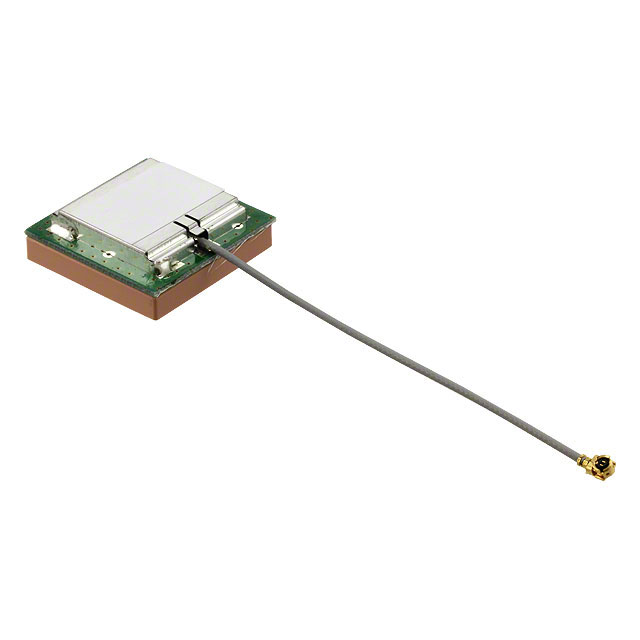

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACTPAT254-01-IP
Manufacturer/Brand:	Inventek Systems
Product description	RF ANT 1.575GHZ CER PATCH CAB
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9880 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 9880 pcs

Reference Price (In US Dollars)

1 pcs: $2.977

100 pcs: $2.778

500 pcs: $2.605

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.977

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACTPAT254-01-IP

Part Number	ACTPAT254-01-IP	Manufacturer	Inventek Systems
Description	RF ANT 1.575GHZ CER PATCH CAB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9880 pcs	Data sheet
VSWR	2	Termination	Cable (63mm) - U.FL
Series	-	Return Loss	-10dB
Packaging	Tray	Other Names	1475-1008
Number of Bands	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.327" (8.30mm)	Gain	5dBic
Frequency Range	1.573GHz ~ 1.588GHz	Frequency Group	UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band)	1.575GHz	Features	LNA
Detailed Description	1.575GHz GPS Ceramic Patch RF Antenna 1.573GHz ~ 1.588GHz 5dBic Cable (63mm) - U.FL Surface Mount	Applications	GPS
Antenna Type	Ceramic Patch
