InvenSense

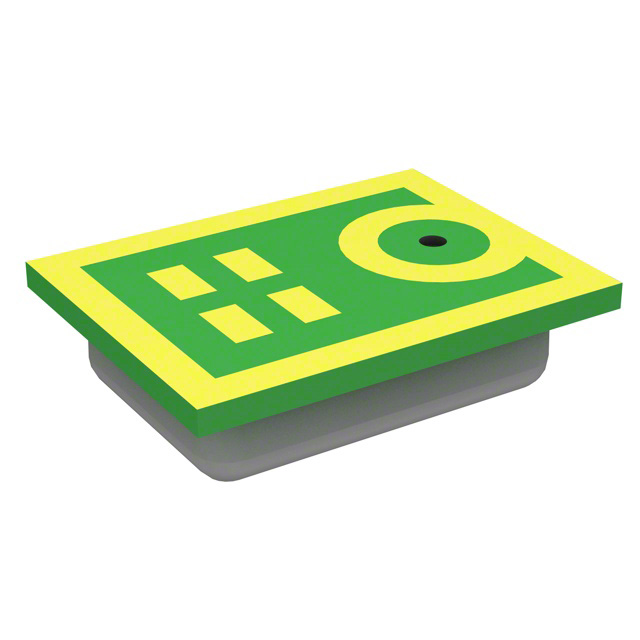

| Part Number | INMP421ACEZ-RL7 | Manufacturer | InvenSense |
|---|---|---|---|
| Description | MIC MEMS DIGITAL PDM OMNI -26DB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6383 pcs | Data sheet | |
| Voltage Range | 1.62V ~ 3.63V | Type | MEMS (Silicon) |
| Termination | Solder Pads | Size / Dimension | 0.157" L x 0.118" W (4.00mm x 3.00mm) |
| Shape | Rectangular | Series | INMP421 |
| Sensitivity | -26dB ±3dB @ 94dB SPL | S/N Ratio | 61dB |
| Port Location | Bottom | Packaging | Original-Reel® |
| Output Type | Digital, PDM | Other Names | 1428-1022-6 ADMP421ACEZ-RL7DKR ADMP421ACEZ-RL7DKR-ND |
| Moisture Sensitivity Level (MSL) | 5 (48 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.043" (1.10mm) | Frequency Range | 100Hz ~ 15kHz |
| Direction | Omnidirectional | Detailed Description | 100Hz ~ 15kHz Digital, PDM Microphone MEMS (Silicon) 1.62V ~ 3.63V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads |
| Current - Supply | 650µA |
