ISL85009FRZ-T7A

Intersil

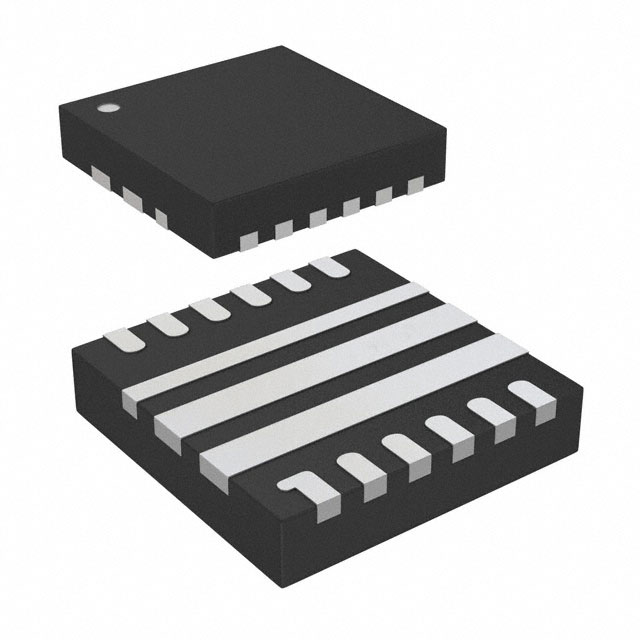

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISL85009FRZ-T7A
Manufacturer/Brand:	Intersil
Product description	9A SYNCH BUCK REG 15LD TDFN 3.5X
Datasheets:	1.ISL85009FRZ-T7A.pdf 2.ISL85009FRZ-T7A.pdf 3.ISL85009FRZ-T7A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32990 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 32990 pcs

Reference Price (In US Dollars)

250 pcs: $1.043

500 pcs: $0.935

1250 pcs: $0.789

2500 pcs: $0.75

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.043

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISL85009FRZ-T7A

Part Number	ISL85009FRZ-T7A	Manufacturer	Intersil
Description	9A SYNCH BUCK REG 15LD TDFN 3.5X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32990 pcs	Data sheet	1.ISL85009FRZ-T7A.pdf 2.ISL85009FRZ-T7A.pdf 3.ISL85009FRZ-T7A.pdf
Voltage - Output (Min/Fixed)	0.6V	Voltage - Output (Max)	18V
Voltage - Input (Min)	3.8V	Voltage - Input (Max)	18V
Topology	Buck	Synchronous Rectifier	Yes
Supplier Device Package	15-TQFN (3.5x3.5)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	15-WFQFN
Output Type	Adjustable	Output Configuration	Positive
Other Names	ISL85009FRZ-T7ATR	Operating Temperature	-40°C ~ 125°C (TJ)
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Step-Down	Frequency - Switching	300kHz, 600kHz
Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 9A 15-WFQFN	Current - Output	9A
