ISL8484IR

Intersil

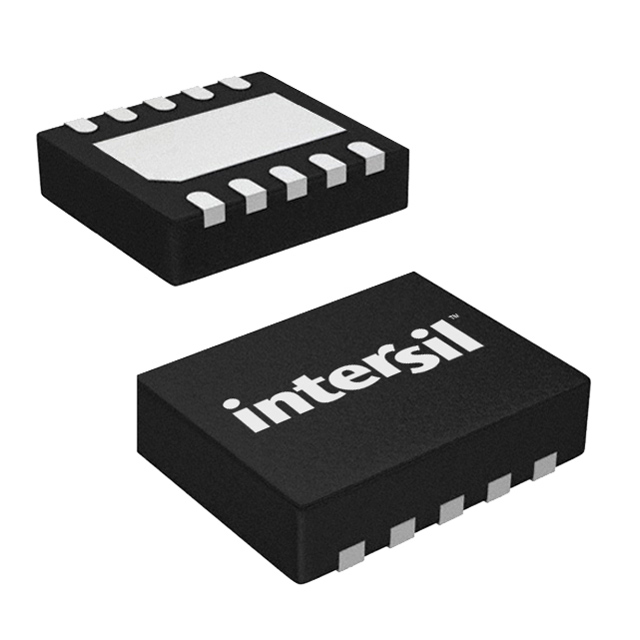

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISL8484IR
Manufacturer/Brand:	Intersil
Product description	IC SWITCH DUAL SPDT 10TDFN
Datasheets:	ISL8484IR.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6893 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6893 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISL8484IR

Part Number	ISL8484IR	Manufacturer	Intersil
Description	IC SWITCH DUAL SPDT 10TDFN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6893 pcs	Data sheet	ISL8484IR.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 4.5 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 20ns	Switch Circuit	SPDT
Supplier Device Package	10-TDFN (3x3)	Series	-
Packaging	Tube	Package / Case	10-WFDFN Exposed Pad
Operating Temperature	-40°C ~ 85°C (TA)	On-State Resistance (Max)	500 mOhm
Number of Circuits	2	Multiplexer/Demultiplexer Circuit	2:1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Detailed Description	2 Circuit IC Switch 2:1 500 mOhm 10-TDFN (3x3)	Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-85dB @ 100kHz	Charge Injection	170pC
Channel-to-Channel Matching (ΔRon)	60 mOhm	Channel Capacitance (CS(off), CD(off))	62pF
Base Part Number	ISL8484	-3db Bandwidth	-
