ISL6596IRZ-T

Intersil

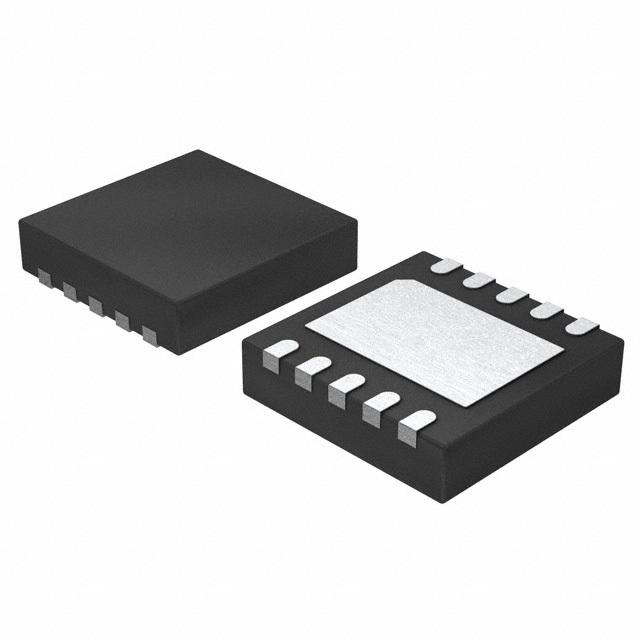

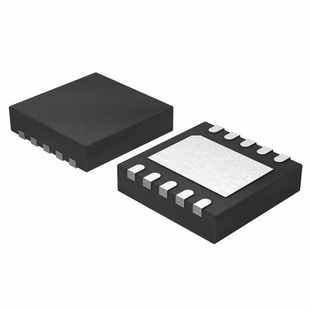

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISL6596IRZ-T
Manufacturer/Brand:	Intersil
Product description	IC MOSFET DRVR SYNC BUCK 10-DFN
Datasheets:	ISL6596IRZ-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40888 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 40888 pcs

Reference Price (In US Dollars)

6000 pcs: $0.768

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.768

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISL6596IRZ-T

Part Number	ISL6596IRZ-T	Manufacturer	Intersil
Description	IC MOSFET DRVR SYNC BUCK 10-DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40888 pcs	Data sheet	ISL6596IRZ-T.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Supplier Device Package	10-DFN (3x3)
Series	-	Rise / Fall Time (Typ)	8ns, 8ns
Packaging	Tape & Reel (TR)	Package / Case	10-VFDFN Exposed Pad
Operating Temperature	-40°C ~ 125°C (TJ)	Number of Drivers	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	6 Weeks	Logic Voltage - VIL, VIH	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	36V	Gate Type	N-Channel MOSFET
Driven Configuration	Half-Bridge	Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
Current - Peak Output (Source, Sink)	-, 4A	Channel Type	Synchronous
Base Part Number	ISL6596
