TLE9201SGAUMA1

International Rectifier (Infineon Technologies)

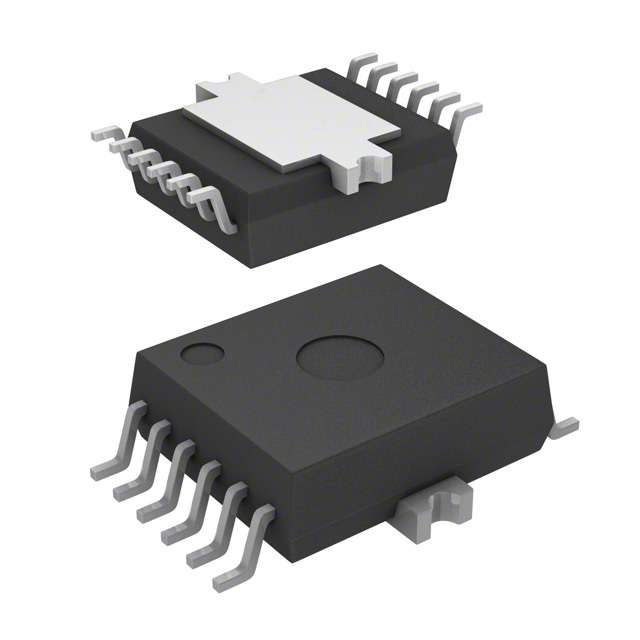

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLE9201SGAUMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC DRIVER 12DSO
Datasheets:	TLE9201SGAUMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44237 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 44237 pcs

Reference Price (In US Dollars)

1000 pcs: $0.746

2000 pcs: $0.71

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.746

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLE9201SGAUMA1

Part Number	TLE9201SGAUMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC DRIVER 12DSO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44237 pcs	Data sheet	TLE9201SGAUMA1.pdf
Voltage - Supply	5 V ~ 28 V	Voltage - Load	5 V ~ 28 V
Technology	Power MOSFET	Supplier Device Package	PG-DSO-12-17
Series	Automotive, AEC-Q100	Rds On (Typ)	100 mOhm LS, 100 mOhm HS
Packaging	Tape & Reel (TR)	Package / Case	12-BSOP (0.295", 7.50mm Width) Exposed Pad
Output Configuration	Half Bridge (2)	Other Names	SP000885602 TLE9201SGAUMA1-ND TLE9201SGAUMA1TR
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	39 Weeks
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	PWM, SPI	Features	-
Fault Protection	Open Load Detect, Over Temperature, Short Circuit, UVLO	Detailed Description	Half Bridge (2) Driver DC Motors, General Purpose Power MOSFET PG-DSO-12-17
Current - Peak Output	-	Current - Output / Channel	6A
Applications	DC Motors, General Purpose
