TLE6209RAUMA2

International Rectifier (Infineon Technologies)

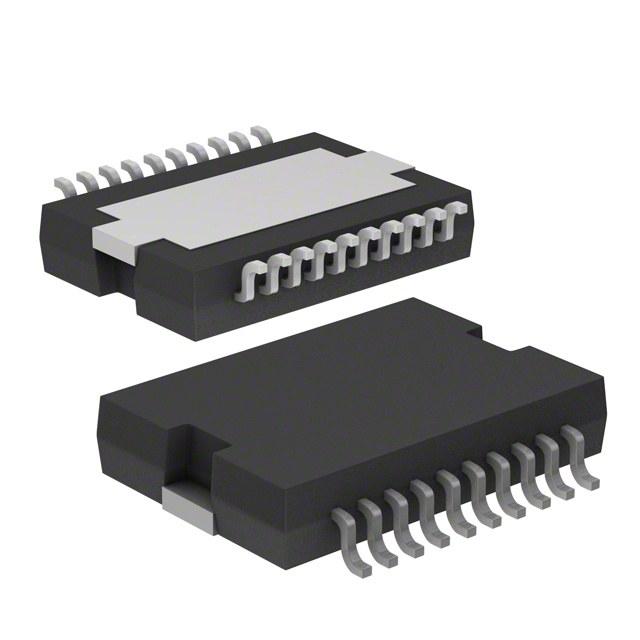

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLE6209RAUMA2
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC MOTOR DRIVER SPI 20DSO
Datasheets:	TLE6209RAUMA2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20328 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 20328 pcs

Reference Price (In US Dollars)

800 pcs: $1.66

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.66

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLE6209RAUMA2

Part Number	TLE6209RAUMA2	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC MOTOR DRIVER SPI 20DSO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20328 pcs	Data sheet	TLE6209RAUMA2.pdf
Voltage - Supply	4.75 V ~ 5.5 V	Voltage - Load	4.4 V ~ 40 V
Technology	DMOS	Supplier Device Package	PG-DSO-20-37
Step Resolution	-	Series	SPT®
Packaging	Tape & Reel (TR)	Package / Case	20-SOIC (0.433", 11.00mm Width) Exposed Pad
Output Configuration	Half Bridge (2)	Other Names	SP000732082 TLE6209R TLE6209R-ND TLE6209RCUMA1 TLE6209RNT TLE6209RT TLE6209RTR TLE6209RXT
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	39 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	SPI
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver DMOS SPI PG-DSO-20-37
Current - Output	6A	Base Part Number	TLE6209
Applications	Automotive
