TCA3727NKLA1

International Rectifier (Infineon Technologies)

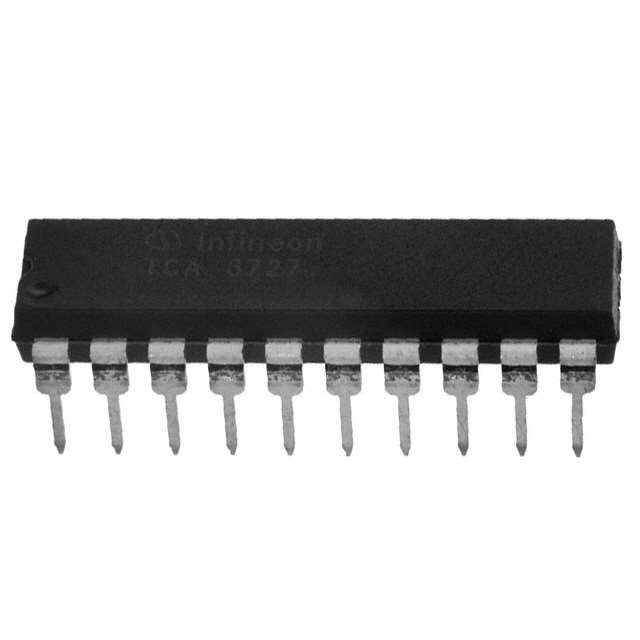

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TCA3727NKLA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC MOTOR DRIVER PAR 20DIP
Datasheets:	TCA3727NKLA1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	2791 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2791 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TCA3727NKLA1

Part Number	TCA3727NKLA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC MOTOR DRIVER PAR 20DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2791 pcs	Data sheet	TCA3727NKLA1.pdf
Voltage - Supply	4.5 V ~ 6.5 V	Voltage - Load	5 V ~ 50 V
Technology	Bipolar	Supplier Device Package	P-DIP-20-6
Step Resolution	1, 1/2, 1/4	Series	-
Packaging	Tube	Package / Case	20-DIP (0.300", 7.62mm)
Output Configuration	Half Bridge (4)	Other Names	SP000011713 TCA3727 TCA3727-ND TCA3727IN TCA3727IN-ND TCA3727NK
Operating Temperature	-40°C ~ 110°C (TA)	Mounting Type	Through Hole
Motor Type - Stepper	Bipolar	Motor Type - AC, DC	Brushed DC
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Bipolar Motor Driver Bipolar Parallel P-DIP-20-6	Current - Output	1A
Base Part Number	TCA3727	Applications	General Purpose
