IRSM515-035PATR

International Rectifier (Infineon Technologies)

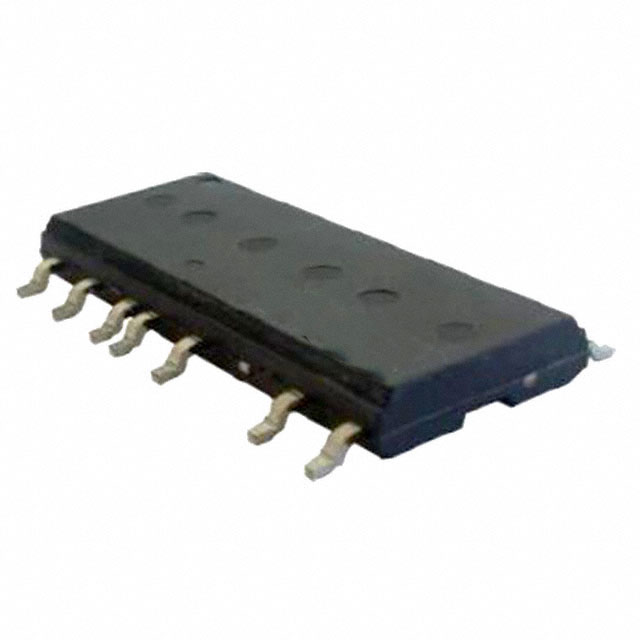

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRSM515-035PATR
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MICRO MCM
Datasheets:	IRSM515-035PATR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14965 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14965 pcs

Reference Price (In US Dollars)

500 pcs: $2.207

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.207

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRSM515-035PATR

Part Number	IRSM515-035PATR	Manufacturer	International Rectifier (Infineon Technologies)
Description	MICRO MCM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14965 pcs	Data sheet	IRSM515-035PATR.pdf
Voltage - Supply	13.5 V ~ 16.5 V	Voltage - Load	400V (Max)
Technology	UMOS	Supplier Device Package	23-SOP
Series	µIPM™-DIP	Rds On (Typ)	1.8 Ohm
Packaging	Tape & Reel (TR)	Package / Case	32-PowerSMD Module, 23 Leads
Output Configuration	Half Bridge (3)	Other Names	SP001793368
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Load Type	Inductive	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Logic	Features	Bootstrap Circuit
Fault Protection	UVLO	Detailed Description	Half Bridge (3) Driver AC Motors UMOS 23-SOP
Current - Peak Output	15A	Current - Output / Channel	2.1A
Applications	AC Motors
