IRLH5030TR2PBF

International Rectifier (Infineon Technologies)

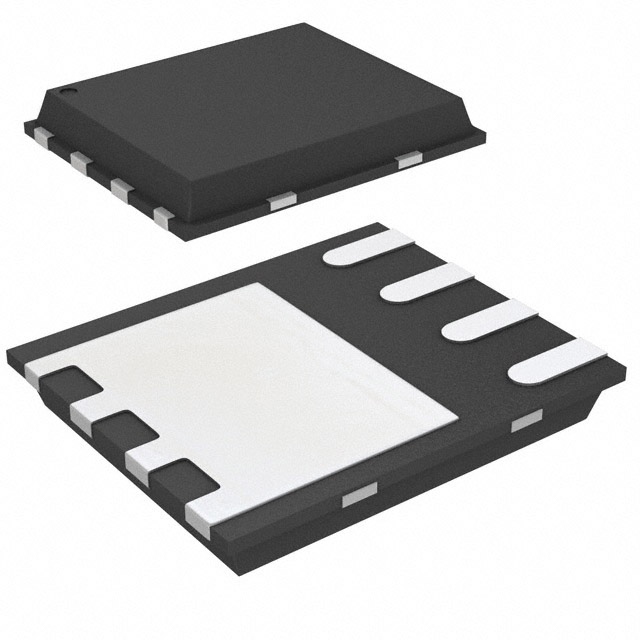

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRLH5030TR2PBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 100V 13A 8PQFN
Datasheets:	IRLH5030TR2PBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5755 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5755 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRLH5030TR2PBF

Part Number	IRLH5030TR2PBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 100V 13A 8PQFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5755 pcs	Data sheet	IRLH5030TR2PBF.pdf
Vgs(th) (Max) @ Id	2.5V @ 150µA	Vgs (Max)	±16V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PQFN (5x6) Single Die
Series	HEXFET®	Rds On (Max) @ Id, Vgs	9 mOhm @ 50A, 10V
Power Dissipation (Max)	3.6W (Ta), 156W (Tc)	Packaging	Cut Tape (CT)
Package / Case	8-PowerVDFN	Other Names	IRLH5030TR2PBFCT
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	5185pF @ 50V	Gate Charge (Qg) (Max) @ Vgs	94nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	100V
Detailed Description	N-Channel 100V 13A (Ta), 100A (Tc) 3.6W (Ta), 156W (Tc) Surface Mount PQFN (5x6) Single Die	Current - Continuous Drain (Id) @ 25°C	13A (Ta), 100A (Tc)
