IRL7472L1TRPBF

International Rectifier (Infineon Technologies)

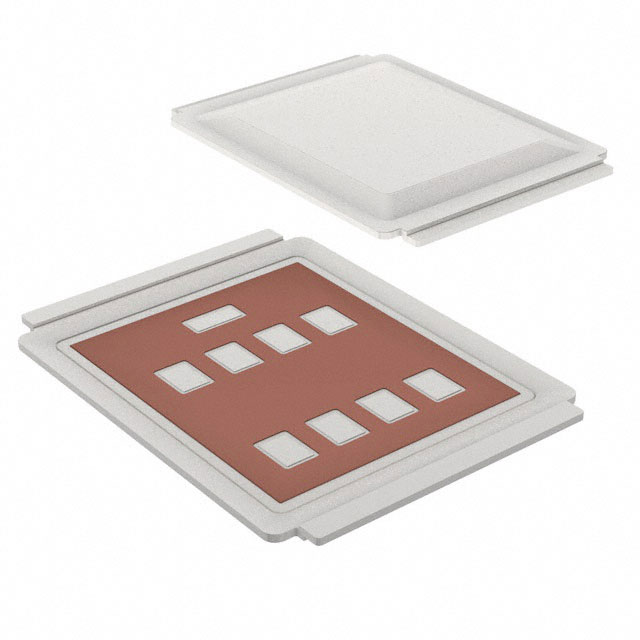

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRL7472L1TRPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 40V 375A
Datasheets:	IRL7472L1TRPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46422 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46422 pcs

Reference Price (In US Dollars)

4000 pcs: $0.79

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.79

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRL7472L1TRPBF

Part Number	IRL7472L1TRPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 40V 375A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46422 pcs	Data sheet	IRL7472L1TRPBF.pdf
Vgs(th) (Max) @ Id	2.5V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	DIRECTFET L8
Series	StrongIRFET™	Rds On (Max) @ Id, Vgs	0.59 mOhm @ 195A, 10V
Power Dissipation (Max)	3.8W (Ta), 341W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	DirectFET™ Isometric L8	Other Names	IRL7472L1TRPBF-ND IRL7472L1TRPBFTR SP001558732
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	20082pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	330nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	N-Channel 40V 375A (Tc) 3.8W (Ta), 341W (Tc) Surface Mount DIRECTFET L8	Current - Continuous Drain (Id) @ 25°C	375A (Tc)
