IRGP6690D-EPBF

International Rectifier (Infineon Technologies)

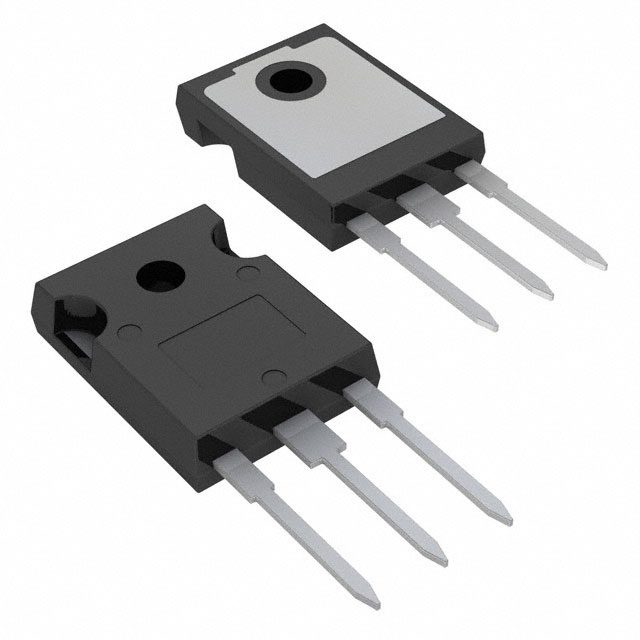

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRGP6690D-EPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IGBT 600V 90A TO247AD
Datasheets:	IRGP6690D-EPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7049 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7049 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRGP6690D-EPBF

Part Number	IRGP6690D-EPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	IGBT 600V 90A TO247AD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7049 pcs	Data sheet	IRGP6690D-EPBF.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 75A
Test Condition	400V, 75A, 10 Ohm, 15V	Td (on/off) @ 25°C	85ns/222ns
Switching Energy	2.4mJ (on), 2.2mJ (off)	Supplier Device Package	TO-247AD
Series	-	Reverse Recovery Time (trr)	90ns
Power - Max	483W	Packaging	Tube
Package / Case	TO-247-3	Other Names	SP001542324
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	-
Gate Charge	140nC	Detailed Description	IGBT 600V 140A 483W Through Hole TO-247AD
Current - Collector Pulsed (Icm)	225A	Current - Collector (Ic) (Max)	140A
