IRG4IBC30UDPBF

International Rectifier (Infineon Technologies)

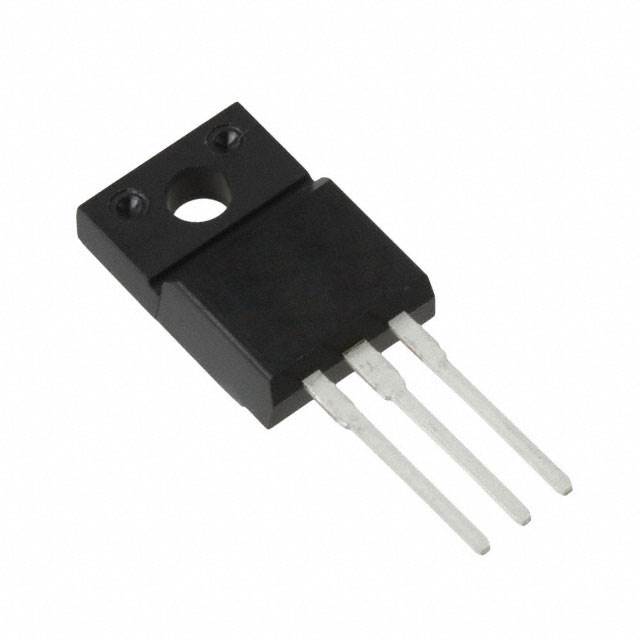

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRG4IBC30UDPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IGBT 600V 17A 45W TO220FP
Datasheets:	IRG4IBC30UDPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24355 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24355 pcs

Reference Price (In US Dollars)

1 pcs: $1.463

10 pcs: $1.315

100 pcs: $1.077

500 pcs: $0.917

1000 pcs: $0.773

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.463

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRG4IBC30UDPBF

Part Number	IRG4IBC30UDPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	IGBT 600V 17A 45W TO220FP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24355 pcs	Data sheet	IRG4IBC30UDPBF.pdf
Voltage - Collector Emitter Breakdown (Max)	600V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 12A
Test Condition	480V, 12A, 23 Ohm, 15V	Td (on/off) @ 25°C	40ns/91ns
Switching Energy	380µJ (on), 160µJ (off)	Supplier Device Package	TO-220AB Full-Pak
Series	-	Reverse Recovery Time (trr)	42ns
Power - Max	45W	Packaging	Tube
Package / Case	TO-220-3 Full Pack	Other Names	*IRG4IBC30UDPBF SP001540446
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	-
Gate Charge	50nC	Detailed Description	IGBT 600V 17A 45W Through Hole TO-220AB Full-Pak
Current - Collector Pulsed (Icm)	68A	Current - Collector (Ic) (Max)	17A
