IRFBA90N20DPBF

International Rectifier (Infineon Technologies)

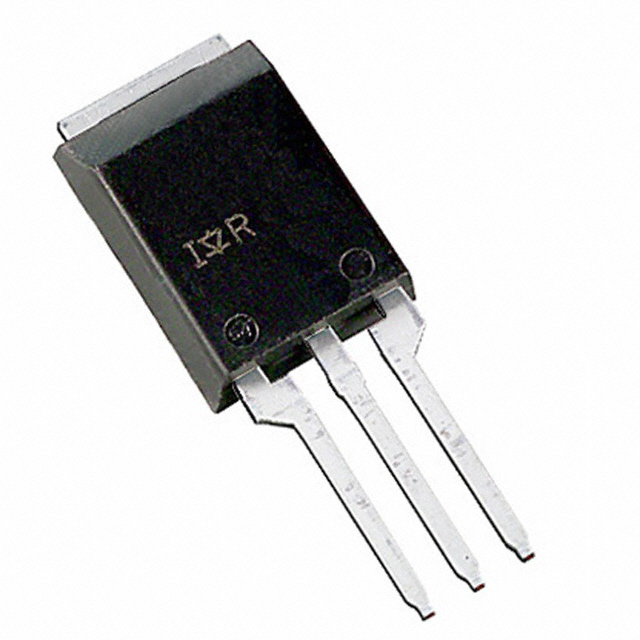

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRFBA90N20DPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 200V 98A SUPER-220
Datasheets:	IRFBA90N20DPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12128 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12128 pcs

Reference Price (In US Dollars)

1 pcs: $2.72

50 pcs: $2.23

100 pcs: $2.013

500 pcs: $1.686

1000 pcs: $1.469

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.72

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRFBA90N20DPBF

Part Number	IRFBA90N20DPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 200V 98A SUPER-220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12128 pcs	Data sheet	IRFBA90N20DPBF.pdf
Vgs(th) (Max) @ Id	5V @ 250µA	Vgs (Max)	±30V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	SUPER-220™ (TO-273AA)
Series	HEXFET®	Rds On (Max) @ Id, Vgs	23 mOhm @ 59A, 10V
Power Dissipation (Max)	650W (Tc)	Packaging	Tube
Package / Case	Super-220™-3 (Straight Leads)	Other Names	*IRFBA90N20DPBF SP001551776
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	6080pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	240nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	200V
Detailed Description	N-Channel 200V 98A (Tc) 650W (Tc) Through Hole SUPER-220™ (TO-273AA)	Current - Continuous Drain (Id) @ 25°C	98A (Tc)
