IRF7780MTRPBF

International Rectifier (Infineon Technologies)

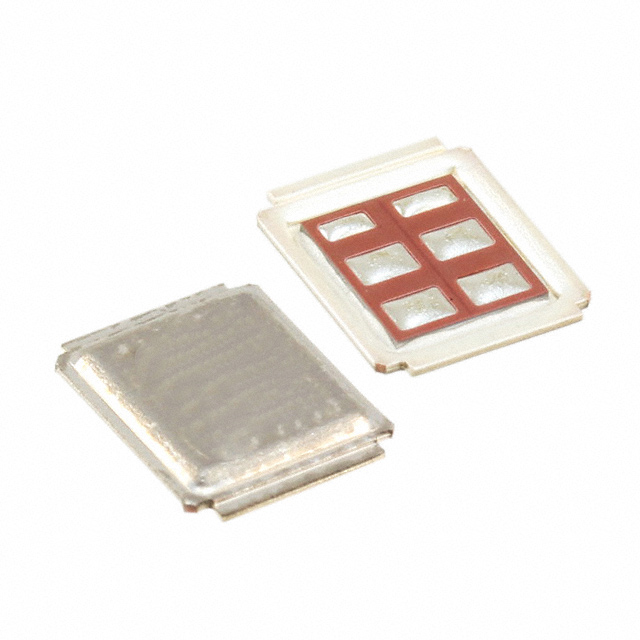

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRF7780MTRPBF
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 75V 89A
Datasheets:	IRF7780MTRPBF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31129 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31129 pcs

Reference Price (In US Dollars)

1 pcs: $1.095

10 pcs: $0.988

100 pcs: $0.794

500 pcs: $0.618

1000 pcs: $0.512

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.095

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRF7780MTRPBF

Part Number	IRF7780MTRPBF	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 75V 89A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31129 pcs	Data sheet	IRF7780MTRPBF.pdf
Vgs(th) (Max) @ Id	3.7V @ 150µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	DirectFET™ Isometric ME
Series	StrongIRFET™	Rds On (Max) @ Id, Vgs	5.7 mOhm @ 53A, 10V
Power Dissipation (Max)	96W (Tc)	Packaging	Cut Tape (CT)
Package / Case	DirectFET™ Isometric ME	Other Names	IRF7780MTRPBFCT
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	6504pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	186nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V	Drain to Source Voltage (Vdss)	75V
Detailed Description	N-Channel 75V 89A (Tc) 96W (Tc) Surface Mount DirectFET™ Isometric ME	Current - Continuous Drain (Id) @ 25°C	89A (Tc)
