IRF7748L1TRPBF

International Rectifier (Infineon Technologies)International Rectifier (Infineon Technologies)

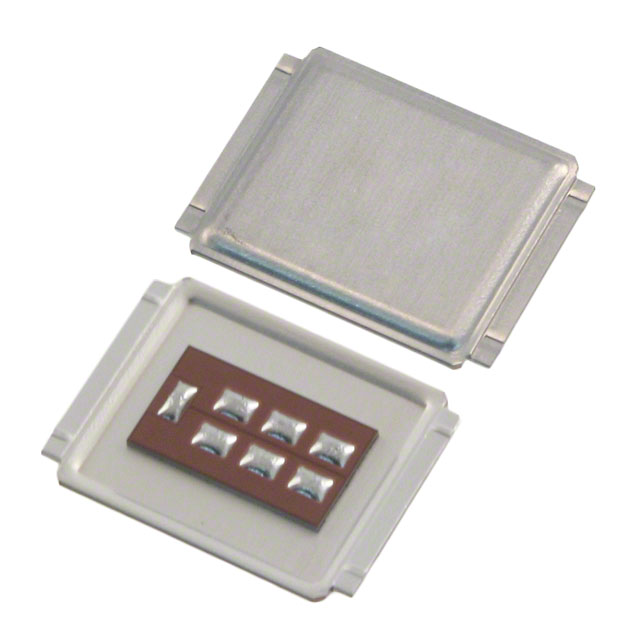

IRF7748L1TRPBF Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: IRF7748L1TRPBF
Manufacturer/Brand: International Rectifier (Infineon Technologies)
Product description MOSFET N-CH 60V 28A DIRECTFETL6
Datasheets: IRF7748L1TRPBF.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 56602 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 56602 pcs
Reference Price (In US Dollars)
4000 pcs
$0.673
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:
  • Qty:
Total:$0.673

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of IRF7748L1TRPBF

Part Number IRF7748L1TRPBF Manufacturer International Rectifier (Infineon Technologies)
Description MOSFET N-CH 60V 28A DIRECTFETL6 Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 56602 pcs Data sheet IRF7748L1TRPBF.pdf
Vgs(th) (Max) @ Id 4V @ 250µA Vgs (Max) ±20V
Technology MOSFET (Metal Oxide) Supplier Device Package DIRECTFET L6
Series - Rds On (Max) @ Id, Vgs 2.2 mOhm @ 89A, 10V
Power Dissipation (Max) 3.3W (Ta), 94W (Tc) Packaging Tape & Reel (TR)
Package / Case DirectFET™ Isometric L6 Other Names IRF7748L1TRPBF-ND
IRF7748L1TRPBFTR
SP001565632
Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds 8075pF @ 50V Gate Charge (Qg) (Max) @ Vgs 220nC @ 10V
FET Type N-Channel FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 10V Drain to Source Voltage (Vdss) 60V
Detailed Description N-Channel 60V 28A (Ta), 148A (Tc) 3.3W (Ta), 94W (Tc) Surface Mount DIRECTFET L6 Current - Continuous Drain (Id) @ 25°C 28A (Ta), 148A (Tc)
