IRF5803

International Rectifier (Infineon Technologies)

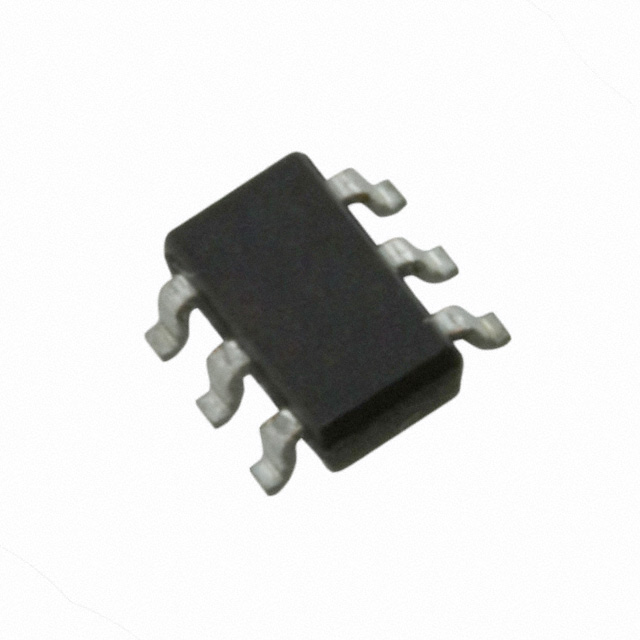

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRF5803
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET P-CH 40V 3.4A 6-TSOP
Datasheets:	IRF5803.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	3986 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3986 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRF5803

Part Number	IRF5803	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET P-CH 40V 3.4A 6-TSOP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3986 pcs	Data sheet	IRF5803.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	Micro6™(TSOP-6)
Series	HEXFET®	Rds On (Max) @ Id, Vgs	112 mOhm @ 3.4A, 10V
Power Dissipation (Max)	2W (Ta)	Packaging	Tube
Package / Case	SOT-23-6 Thin, TSOT-23-6	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Capacitance (Ciss) (Max) @ Vds	1110pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	37nC @ 10V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	P-Channel 40V 3.4A (Ta) 2W (Ta) Surface Mount Micro6™(TSOP-6)	Current - Continuous Drain (Id) @ 25°C	3.4A (Ta)
