IR2110-2

International Rectifier (Infineon Technologies)

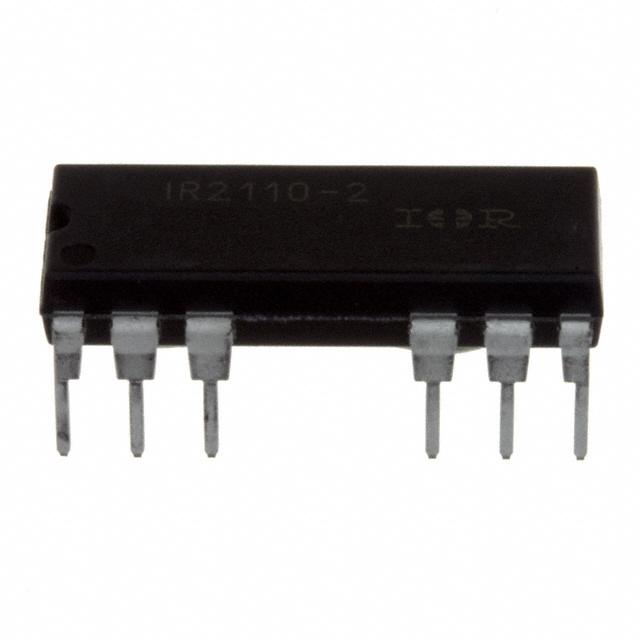

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IR2110-2
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC DRIVER HIGH/LOW SIDE 14-DIP
Datasheets:	IR2110-2.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4372 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4372 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IR2110-2

Part Number	IR2110-2	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC DRIVER HIGH/LOW SIDE 14-DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4372 pcs	Data sheet	IR2110-2.pdf
Voltage - Supply	3.3 V ~ 20 V	Supplier Device Package	16-PDIP
Series	-	Rise / Fall Time (Typ)	25ns, 17ns
Packaging	Tube	Package / Case	16-DIP (0.300", 7.62mm), 14 Leads
Operating Temperature	-40°C ~ 150°C (TJ)	Number of Drivers	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Logic Voltage - VIL, VIH	6V, 9.5V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Type	Non-Inverting	High Side Voltage - Max (Bootstrap)	500V
Gate Type	IGBT, N-Channel MOSFET	Driven Configuration	Half-Bridge
Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 16-PDIP	Current - Peak Output (Source, Sink)	2A, 2A
Channel Type	Independent	Base Part Number	IR2110-2
