IPN70R600P7SATMA1

International Rectifier (Infineon Technologies)

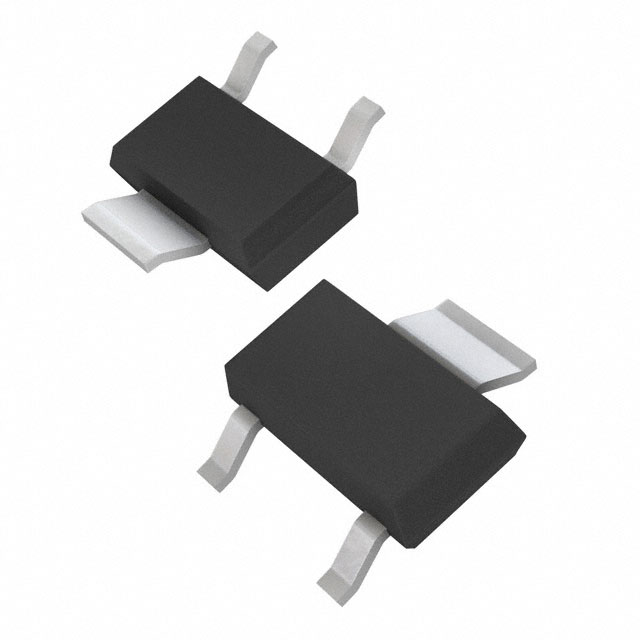

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPN70R600P7SATMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 700V 8.5A SOT223
Datasheets:	1.IPN70R600P7SATMA1.pdf 2.IPN70R600P7SATMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	255523 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 255523 pcs

Reference Price (In US Dollars)

3000 pcs: $0.12

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.12

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPN70R600P7SATMA1

Part Number	IPN70R600P7SATMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 700V 8.5A SOT223	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	255523 pcs	Data sheet	1.IPN70R600P7SATMA1.pdf 2.IPN70R600P7SATMA1.pdf
Vgs(th) (Max) @ Id	3.5V @ 90µA	Vgs (Max)	±16V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PG-SOT223
Series	CoolMOS™ P7	Rds On (Max) @ Id, Vgs	600 mOhm @ 1.8A, 10V
Power Dissipation (Max)	6.9W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	SOT-223-3	Other Names	IPN70R600P7SATMA1-ND IPN70R600P7SATMA1TR SP001657476
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	364pF @ 400V	Gate Charge (Qg) (Max) @ Vgs	10.5nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	700V
Detailed Description	N-Channel 700V 8.5A (Tc) 6.9W (Tc) Surface Mount PG-SOT223	Current - Continuous Drain (Id) @ 25°C	8.5A (Tc)
