IPI100N06S3-03

International Rectifier (Infineon Technologies)

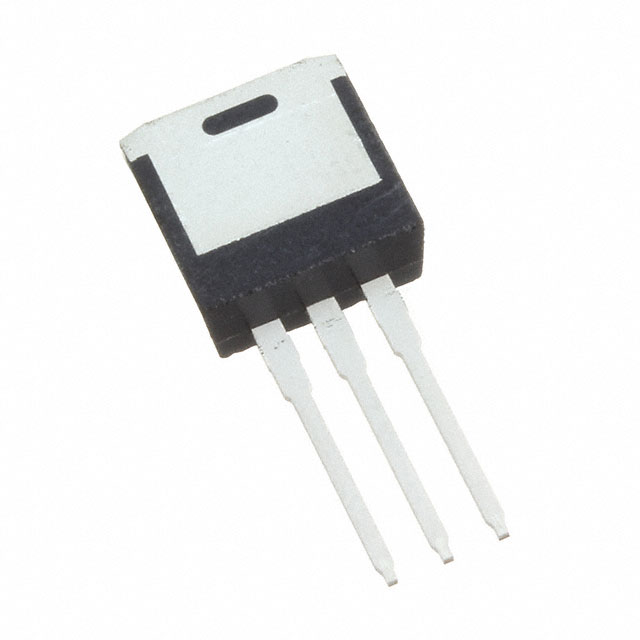

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPI100N06S3-03
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 55V 100A I2PAK
Datasheets:	IPI100N06S3-03.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5128 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5128 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPI100N06S3-03

Part Number	IPI100N06S3-03	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 55V 100A I2PAK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5128 pcs	Data sheet	IPI100N06S3-03.pdf
Vgs(th) (Max) @ Id	4V @ 230µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PG-TO262-3
Series	OptiMOS™	Rds On (Max) @ Id, Vgs	3.3 mOhm @ 80A, 10V
Power Dissipation (Max)	300W (Tc)	Packaging	Tube
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA	Other Names	IPI100N06S303X IPI100N06S303XK SP000087992
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	21620pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	480nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	55V
Detailed Description	N-Channel 55V 100A (Tc) 300W (Tc) Through Hole PG-TO262-3	Current - Continuous Drain (Id) @ 25°C	100A (Tc)
