IPG20N06S2L35ATMA1

International Rectifier (Infineon Technologies)

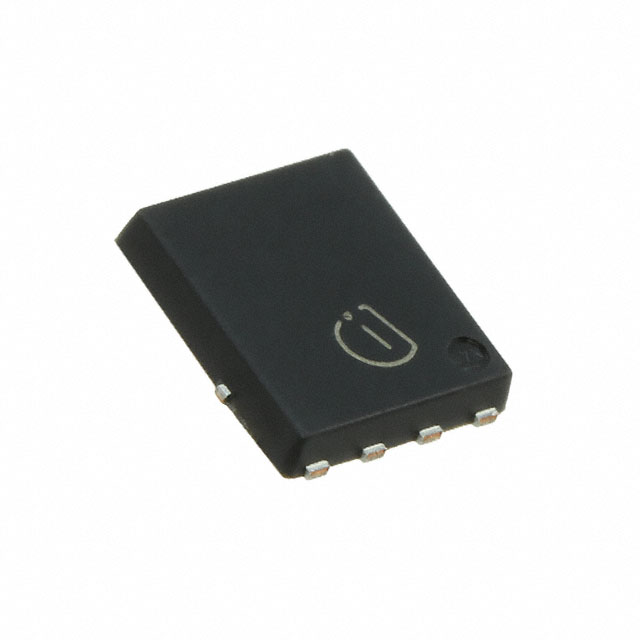

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPG20N06S2L35ATMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET 2N-CH 55V 20A TDSON-8-4
Datasheets:	IPG20N06S2L35ATMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	172418 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 172418 pcs

Reference Price (In US Dollars)

5000 pcs: $0.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.20

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPG20N06S2L35ATMA1

Part Number	IPG20N06S2L35ATMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET 2N-CH 55V 20A TDSON-8-4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	172418 pcs	Data sheet	IPG20N06S2L35ATMA1.pdf
Vgs(th) (Max) @ Id	2V @ 27µA	Supplier Device Package	PG-TDSON-8-4
Series	Automotive, AEC-Q101, OptiMOS™	Rds On (Max) @ Id, Vgs	35 mOhm @ 15A, 10V
Power - Max	65W	Packaging	Tape & Reel (TR)
Package / Case	8-PowerVDFN	Other Names	IPG20N06S2L-35 IPG20N06S2L-35-ND IPG20N06S2L35ATMA1TR SP000613718
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	790pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	23nC @ 10V
FET Type	2 N-Channel (Dual)	FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	55V	Detailed Description	Mosfet Array 2 N-Channel (Dual) 55V 20A 65W Surface Mount PG-TDSON-8-4
Current - Continuous Drain (Id) @ 25°C	20A	Base Part Number	*PG20N06
