IPD70P04P4L08ATMA1

International Rectifier (Infineon Technologies)

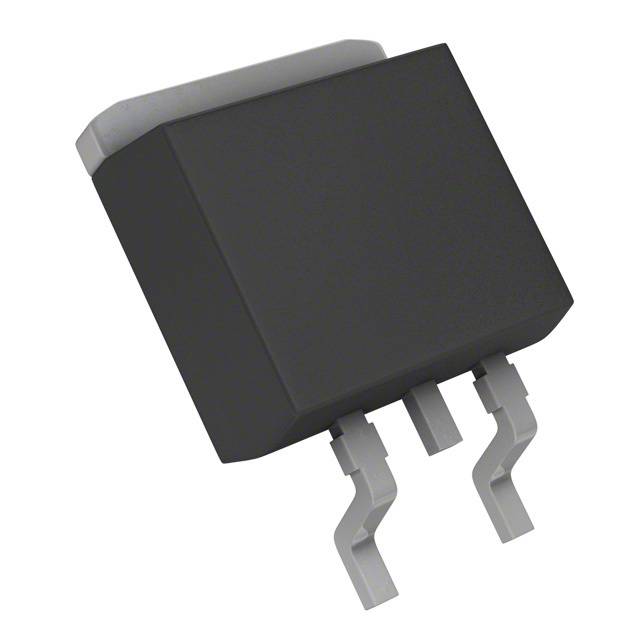

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPD70P04P4L08ATMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET P-CH TO252-3
Datasheets:	IPD70P04P4L08ATMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	157612 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 157612 pcs

Reference Price (In US Dollars)

2500 pcs: $0.197

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.197

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPD70P04P4L08ATMA1

Part Number	IPD70P04P4L08ATMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET P-CH TO252-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	157612 pcs	Data sheet	IPD70P04P4L08ATMA1.pdf
Vgs(th) (Max) @ Id	2.2V @ 120µA	Vgs (Max)	±16V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PG-TO252-3-313
Series	Automotive, AEC-Q101, OptiMOS™	Rds On (Max) @ Id, Vgs	7.8 mOhm @ 70A, 10V
Power Dissipation (Max)	75W (Tc)	Packaging	Tape & Reel (TR)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63	Other Names	SP000840206
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	5430pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	92nC @ 10V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	P-Channel 40V 70A (Tc) 75W (Tc) Surface Mount PG-TO252-3-313	Current - Continuous Drain (Id) @ 25°C	70A (Tc)
