IPC100N04S5L2R6ATMA1

International Rectifier (Infineon Technologies)

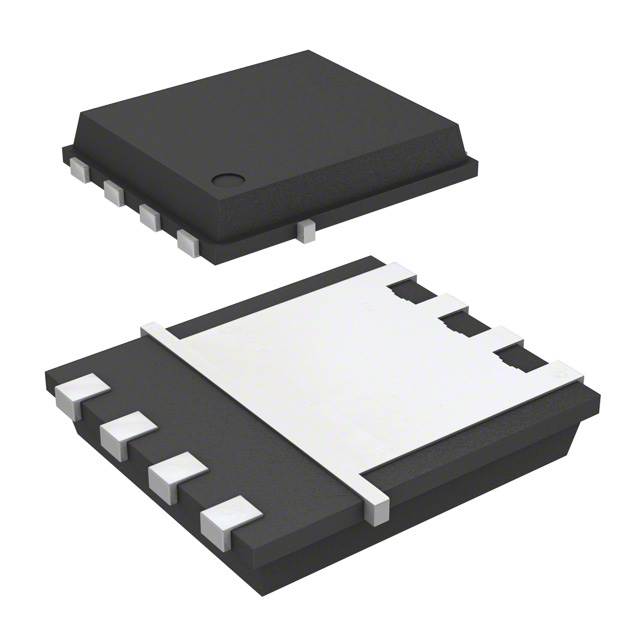

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPC100N04S5L2R6ATMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 40V 100A 8TDSON-34
Datasheets:	IPC100N04S5L2R6ATMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	68413 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 68413 pcs

Reference Price (In US Dollars)

1 pcs: $0.462

10 pcs: $0.408

100 pcs: $0.322

500 pcs: $0.25

1000 pcs: $0.197

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.462

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPC100N04S5L2R6ATMA1

Part Number	IPC100N04S5L2R6ATMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 40V 100A 8TDSON-34	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	68413 pcs	Data sheet	IPC100N04S5L2R6ATMA1.pdf
Vgs(th) (Max) @ Id	2V @ 30µA	Vgs (Max)	±16V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PG-TDSON-8-34
Series	Automotive, AEC-Q101, OptiMOS™	Rds On (Max) @ Id, Vgs	2.6 mOhm @ 50A, 10V
Power Dissipation (Max)	75W (Tc)	Packaging	Cut Tape (CT)
Package / Case	8-PowerTDFN	Other Names	IPC100N04S5L2R6ATMA1CT
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2925pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	55nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	N-Channel 40V 100A (Tc) 75W (Tc) Surface Mount PG-TDSON-8-34	Current - Continuous Drain (Id) @ 25°C	100A (Tc)
